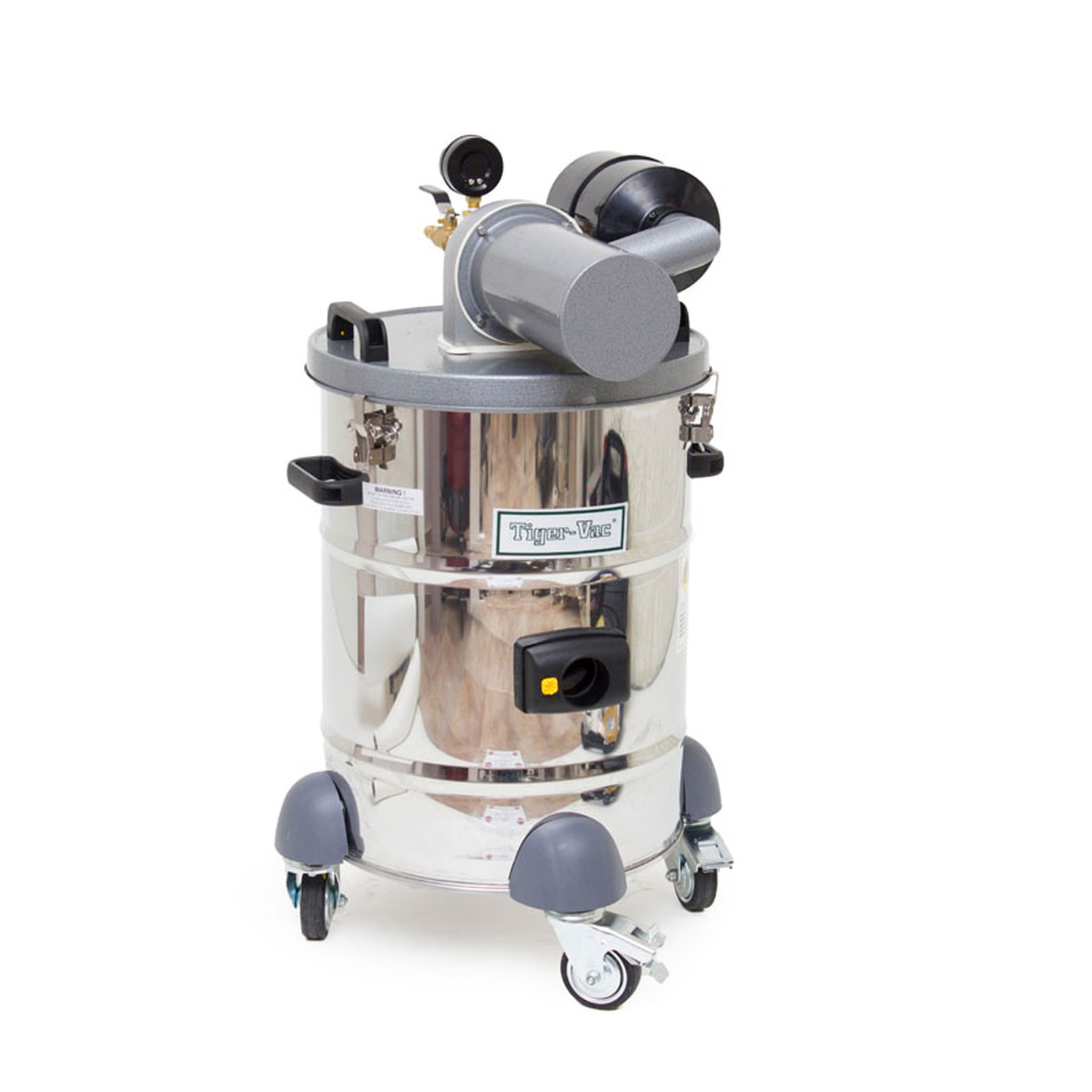

ESD Vacuum Cleaner AVSD-40L (4W) HEPA

Product information "ESD Vacuum Cleaner AVSD-40L (4W) HEPA"

The "ESD Vacuum Cleaner AVSD-40L (4W)" is an ATEX vacuum cleaner for use in potentially explosive dust atmospheres.
Due to the "NOT" - presence of an ignition source at the drive, the vacuum cleaner is ideally suited for such work also in zone 22 and 21.

Material & Properties

  • Material: Stainless steel SAE 430 housing and collection container
  • Length: 635 mm
  • Width: 508 mm
  • Height: 812 mm
  • Input air volume: 45 CFM
  • Input air pressure: 80 PSI
  • Air flow: 120 CFM
  • Vacuum pressure: 180 " H20
  • HEPA filter - Supplied with 99.995% efficiency at 0.3 µm. Tested: IEST RP-CC001.3. H14 with MPPS method according to EN 1822 and OSHA compliant
  • For general housekeeping
  • Designed to absorb specified substances/hazardous dusts such as asbestos, lead, silica, mould, etc.
  • Can be used for the collection of combustible dusts.
  • Pneumatically (air) operated
  • Statically dissipative and conductive
  • ATEX category 3, zone 22 (dust)
  • For wet and dry application
  • Ready for immediate use: Filter and static dissipative accessory kit included
  • Equipped with four (4) static dissipative conductive castors. Optional 2 + 2 trolleys available

Packaging

  • 1 piece in a transport-secured box

Included accessories and tools
⦁ 212304B HEPA FILTER (H14)
⦁ 219046A MAIN FILTER ASSEMBLY SD* FOR C-10 EX VACS WITH 4 LACES FOR WHITE FILTER CAGE (CAGE SOLD SEPARATELY)
⦁ 211394 LIQUID FILTER ASSEMBLY
⦁ 212994-SD COLLECTION BAGS MADE OF CONDUCTIVE MATERIAL (PKG OF 3)
⦁ 212100S CONDUCTIVE POLY LINER WITH DRAW STRING (40 LITRES/10 GALLONS)
⦁ 383440D STATIC CONDUCTIVE CRUSHPROOF SUCTION HOSE ASMBLY (NO WIRE) 1.5" x10' FOR USE w/60mm CONDUCTIVE INLET
⦁ 211029 AIR SUPPLY HOSE ASSEMBLY SD* Ø0.5"(12.7mm)x25'(7.5m) WITH 1 MALE QUICK DISC. & 1 FEMALE QUICK DISC.
⦁ 381208 CURVED HANDLE Ø1.5"(38mm) TO Ø1.25"(32mm) -CHROME
⦁ 323315 EXTENSION WANDS Ø1.25"(32mm)(SET OF 2) -CHROME
⦁ 323318A UTILITY FLOOR TOOL, Ø1.25"(Ø32mm) x 12"(30cm), STATIC CONDUCTIVE PLASTIC w/CONDUCTIVE NYLON BRISTLES
⦁ 323317A UTILITY FLOOR TOOL, 1.25"(Ø32mm) x 12"(30cm), STATIC CONDUCTIVE PLASTIC w/GREY SQUEEGEE BLADES
⦁ 323312A ROUND BRUSH, Ø1.25"(32mm), ESD SAFE PLASTIC
⦁ 323313A CREVICE TOOL, Ø1.25"(32mm), ESD SAFE PLASTIC
⦁ 323314A UPHOLSTERY FLAT TOOL, Ø1.25"(32mm), ESD SAFE PLASTIC

Properties from "ESD Vacuum Cleaner AVSD-40L (4W) HEPA"
ATEX: Yes
Application scope: Dry & Wet
ESD: Yes
Pneumatic: Yes
