Semiconductors
For pure precision - download our flyer on our core products for the semiconductor industry here.
Filter
–
PU:
Bag with 50 Pieces
Available

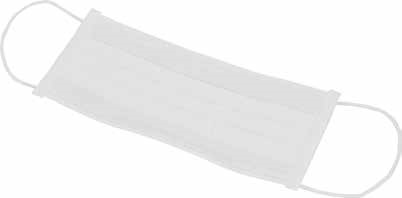

The "RR 55/45 disposable face mask" is a well-ventilated disposable face mask for the cleanroom. It is soft and therefore well suited for long wearing times.Automatically manufactured and packed in a class 1000 cleanroom.
Material mask & filter
Outer: 55% polyethyene, 45% polypropylene.
Inside: 55% polyethyene, 45% polypropylene
Filter medium: 100% polypropylene
Noseband: Wire embedded in polyester; WxL 3,5x11,2mm
Ear loop: PET 75% + Spandex 25%, WxL 2x160mmColour: White
Length: 210 mm ± 5 mm
Width: 90 mm ± 5 mm
Particle Test: Air Particle ( >0.3㎛)≤ 500 ea/ft3. // corresponds to: 17,657.35 particles ( >0.3㎛)/ MQ3
Area of application
Semiconductors, TFT-LCD, electronics production lines, food companies and hospitals
Packaging
Individually packed
50 pieces in 1 bag
20 bags in 1 carton
Not a medical product, used for product protection in clean rooms.
PU:
Carton with 1000 pieces
Available
Size:
S
The "Cleanroom Vinyl Glove" is the most cost-effective representative among the disposable gloves and scores points due to the pleasantly soft material that is created when plasticisers are used in the production process.Vinyl gloves have limited stretch and tear easily. Furthermore, they can only be used in areas with a low risk factor and are rather unsuitable for work requiring a high degree of dexterity.
Material & Properties
Material: Vinyl
Length: Min. 300 mm
Thickness: Min. 0.08 mm ± 0.02 mm
Colour Natural white/semitransparent
Powder-free
Latex-free
Can be worn on both sides
Rolled edge
Very low particle emission
Supple and smooth
Plasticiser-free raw material; contains no phthalates, phenols, bisphenols A and nonylphenols
Recommendation: ISO 5
Elongation Min. 350 %.
Tensile strength Min. 9 Mpa
Surface resistance≤ 5.798 Ω
Particle release (LPC) 6.960 particles/cm² (0,5~1,00μm)
Packaging
Bag of 100 pieces
10 bags in carton (1000 pieces)
PU:
1 piece
Available
Length:
200 cm

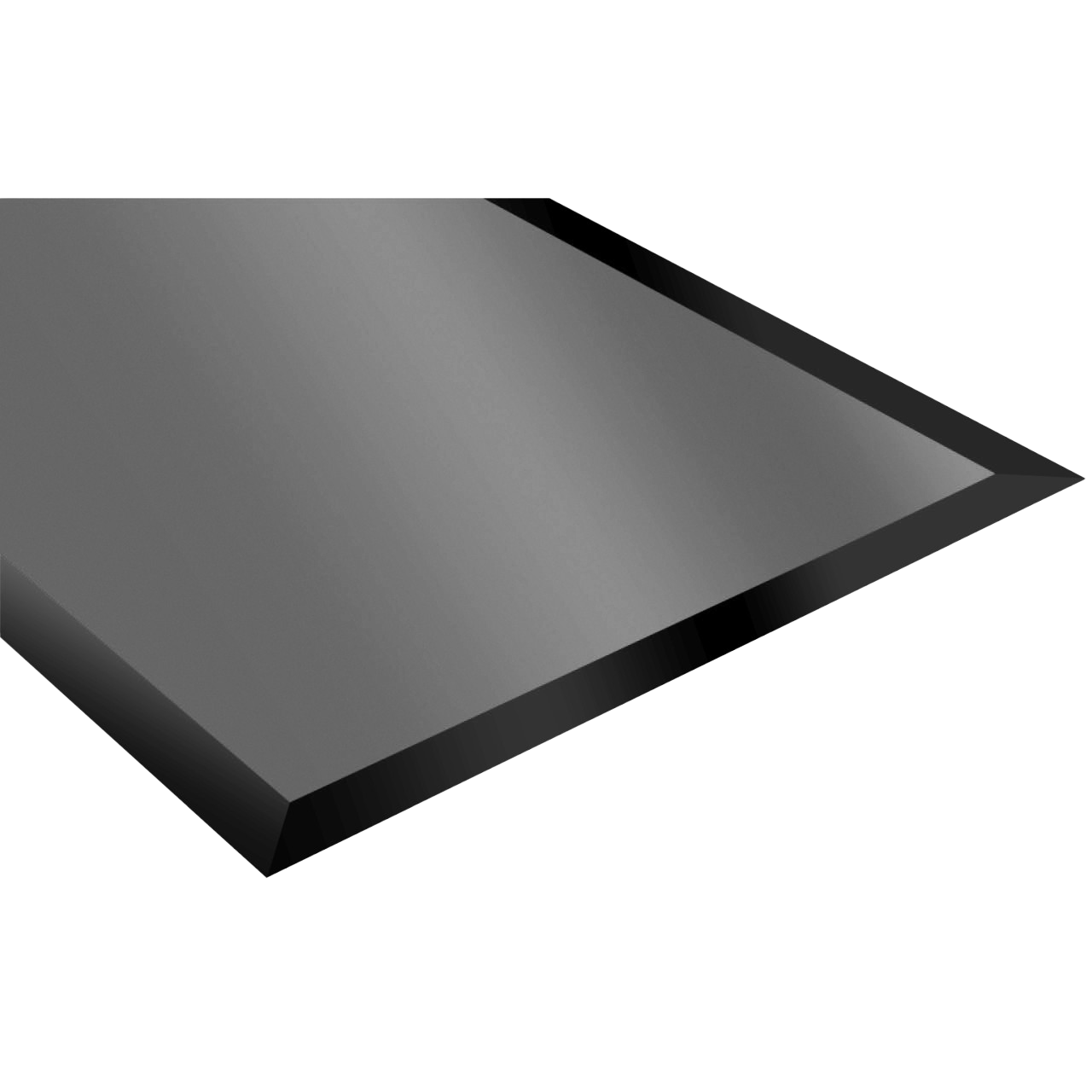

Our "SimStep" permanent adhesive mat is a high-performance decontamination mat with outstanding properties.
Features
Long life - 5+ years on average
No size or area limitation
Easy to maintain
Low mat design
Completely sealed surface; bordered by black bevelled edge strips
No outgassing from the polymer - 100% DOP free.
Safe for all cleanroom environments
Antimicrobial technology that prevents the growth of bacteria.
Low profile yet highly stable mat handles heavy carts and lift trucks
Advantages
Reduces the number of particles and germs
Ecological savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered
Significantly reduces air pollution
Proper placement of SimStep mat prevents cross-contamination
The polymer surface provides a pleasant walking comfort
3 treads or 3 wheel rotations guarantee 100% particle and bacteria removal
Complete decontamination in large and inescapable control zones.
Does not lose effectiveness even after being stepped on several times
Disposable overshoes do not get stuck
No transfer of adhesive to the critical areas
SimStep mats are recyclable
Maximum economic efficiency
Cost savings due to elimination of purchasing, stocking and replacement of conventional peel-off adhesive mats
Technical data
Mat width: approx. 120 cm (+6.4 cm edge material per side)
Length: 100-1000 cm (can be ordered in increments of 100, +6.4 cm border material per side), but can easily be cut to desired dimensions
Thickness: approx. 2 mm
Surface resistance: 108 Ohm
Load capacity: approx. 90 kg/cm2
Heat resistance: 0-52°C
In addition to the mat, the scope of delivery also includes bonding and edging material
PU:
Carton with 300 pairs
Available
The "Overshoe with Carbon Strip" is a blue overshoe made of SMMS non-woven fabric with black conductive carbon strip (98 % polyester, 2 % conductive threads). SMMS fabric garments are strong and durable yet provide excellent comfort, breathability, softness and wearability, preventing and isolating dust, particles, alcohol, blood, bacteria and virus penetration. Widely used in high class protective medical industry , laboratory, electronic, pharmaceutical.
Material & Properties
Material: SMMS non-woven fabric
Carbon tyre: 98%polyester, 2%conductive threads
Colour: blue
Weight: 9g / piece
Length: 400 mm
Height: 170 mm
Surface resistance 106 / 107 Ohm
Material thickness: 7,5mil
Resistance: The materials do not react or discolour after friction with a cloth soaked in 70/30 IPA
The non-woven material is made of polypropylene, which should be resistant to many solvents. However, the strip may have limited resistance, especially to chlorinated hydrocarbons or amines and ammonia
Packaging
300 pairs in a carton
PU:
10 pairs
Available
Size:
S
The "Han-Fit cleanroom glove" is an IAB own brand. It is made of high-quality, seamless nylon, is uncoated and therefore offers very high climate comfort. For this reason, the glove is also used again as an under-glove in cleanrooms.
Nylon glove from the Han series are very robust and ideal for general work in clean environments and cleanrooms from ISO 7.
Material & Properties
Material: Nylon
Length: approx. 240 mm
Colour: white
ISO 7
CAT II
Uncoated
Can be ideally worn as a glove under disposable rubber gloves
Hand specific
High climate comfort as well as high tactile sensitivity
Non-slip
Low linting
Abrasion resistant
Silicone-free
Coloured cuff to distinguish sizes
Packaging
10 pairs in a bag
24 bags per carton (240 pairs)
PU:
Carton with 1000 pieces
Available
The "Overshoe with carbon strip" is a disposable overshoe made of polypropylene and a conductive polyester strip.
Material & Properties
Shoe material: Polypropylene
Conductive strip material: Polyethylene
Length : 480 mm mm
Length of conductive strip: 810 mm
Width: 165 mm
Width of conductive strip: 20 mm
Weight: 36 g/m2
Colour: blue
Packaging
100 pieces in a bag
10 bags in carton (1000 pieces)
PU:
Bag with 100 pieces
Available
Size:
XS
The "Riverstone LE-TACKY" is a nitrile cleanroom glove with very low residue levels. Unlike other nitrile gloves, no sulphur or zinc oxides are added to the glove during manufacture. The very good stretch behaviour exceeds that of the nitrile gloves known to us so far - even that of some neoprene gloves by far.
Material & Properties
Material: 100 % Nitrile
Colour: White
Length: Min. 300 mm
Thickness: 0.08 mm +/- 0.02 mm
Can be worn on both sides
ISO 4
Hardly extractable substances
Powder-free
Latex-free
Textured fingertips
Rolled rim
Very low particle shedding
Very stretchable, supple and grippy
Without plasticisers, contain no phthalates ester, silicone oil and amide
Washed with 0.1m high resistance water with> 17 MegaOhm water and packaged in an ISO 4 clean room environment
Packaging
100 pieces per bag
10 bags per carton
PU:
1 piece
Variant:
1 liter spray bottle

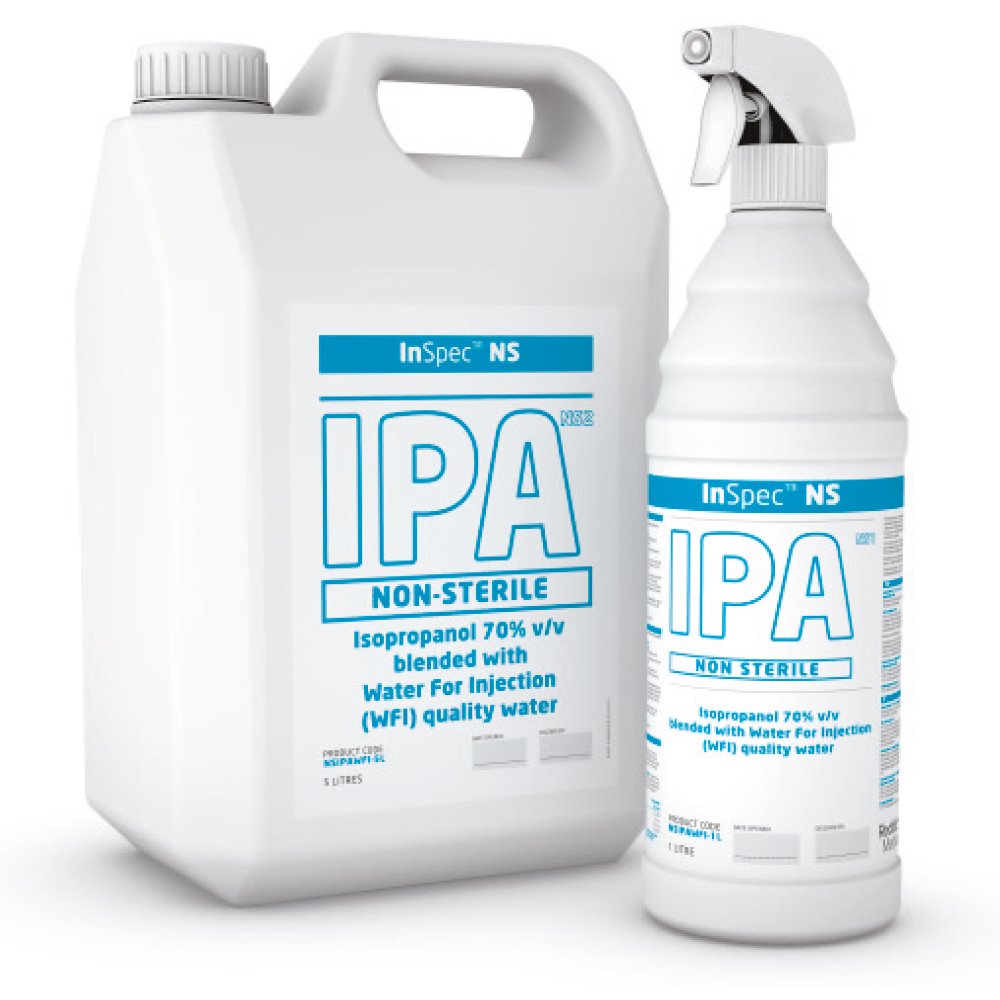

InSpec IPA ist ein gebrauchsfertiges Desinfektionsmittel bestehend aus einer 70% Alkohollösung (Isopropanol) und 30% Reinstwasser WFI-Quality. Das Präparat kann zum Abwischen von Geräten, harten Oberflächen (Böden, Wände und Decken) und Besprühen von behandschuhten Händen benutzt werden. InSpec IPA wird nach GMP-Standards in einem ISO 6 Reinraum gefertigt. Das Produkt wird unter einem ISO-Klasse 5 Laminar Flow abgefüllt und verschlossen.
Material & Eigenschaften:
Lösung aus 70% Alkohol und Wasser von WFI-Güte
Schnelle Wirkung
Nur wenig Rückstände hinterlassend
Schnell wirkend
Bakterizide und fungizide Wirkung
Nach dem Öffnen validierte dreimonatige Haltbarkeitsdauer
Alle Formate werden mit Wasser von WFI-Güte hergestellt
Jede Flasche ist mit zwei Umbeuteln gepackt
Ideale Desinfektionsmittel für Flächen und keimfreien Transfer
Hergestellt gemäß guter Herstellungspraxis (Good Manufacturing Practice, GMP)
Verpackung:
6 Flaschen im Karton
PU:
Bag with 10 pairs
Available
Size:
S

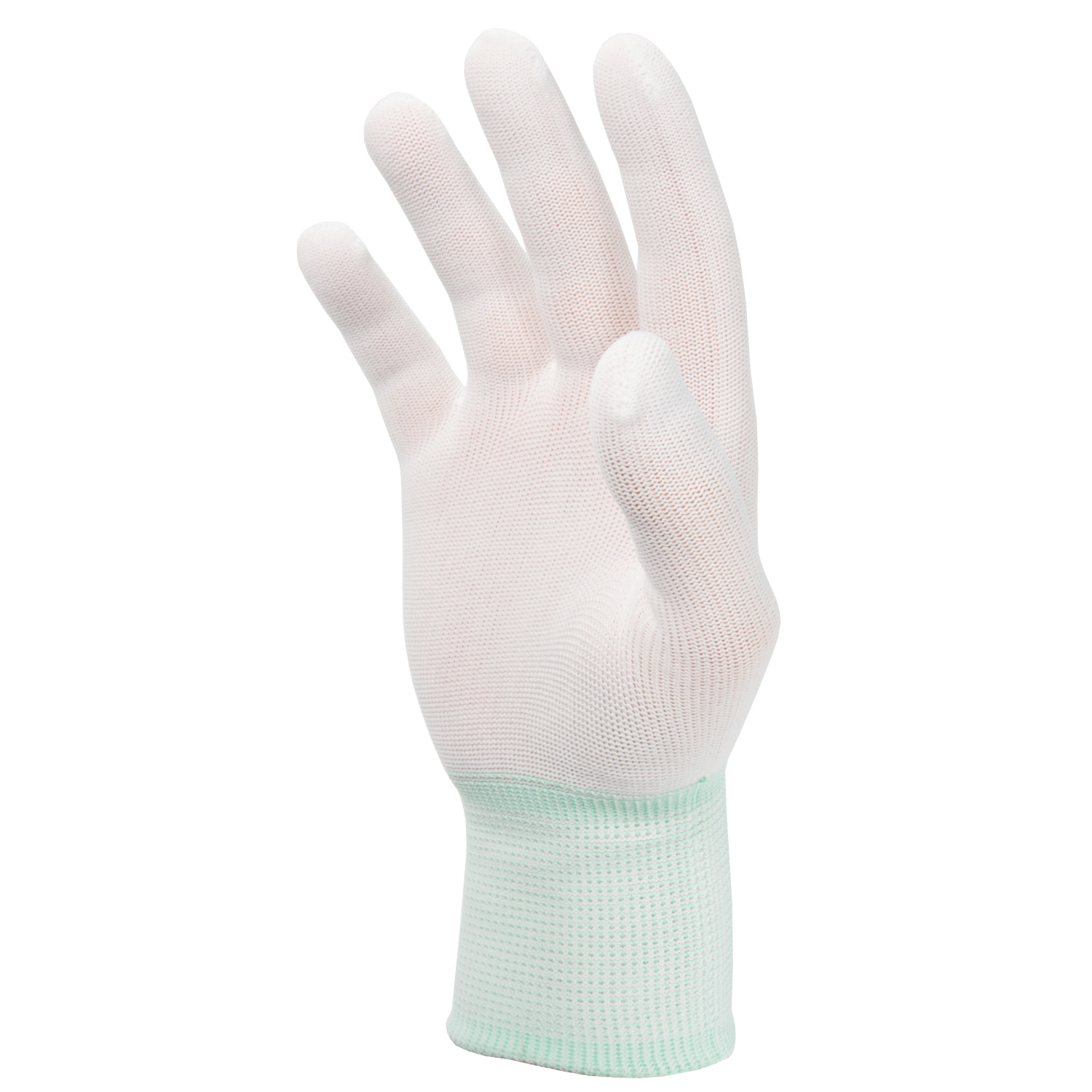

The glove "SimLite Fit" is an uncoated 18 gauge nylon knitted glove which is suitable as a light assembly or under glove.
Material & Properties
Material: Nylon
Length: depending on size approx. 200 - 250 mm
Thickness Approx. 0.08 mm ± 0.02
Colour: White
Knitted
18 gauge
Knitted cuff, own cuff colour per size.
Very thin like a second skin but still robust
Outstanding wearing comfort and perfect fit
Suitable for light assembly work and as an under-glove
Extremely lightweight
Uncoated
Packaging
10 pairs per bag
24 bags per carton (240 pairs)
PU:
Bag with 5 pieces

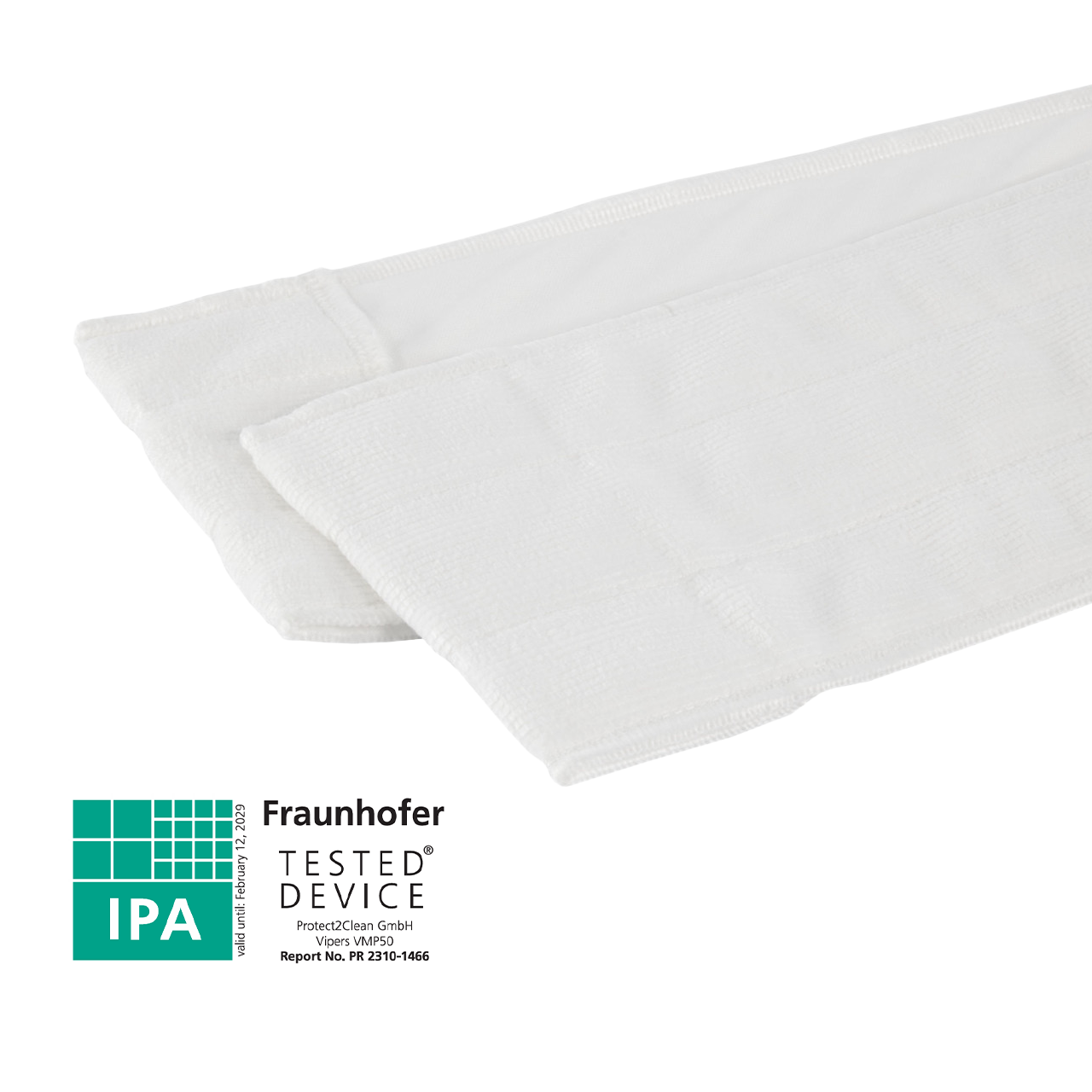

The "Disposable Mop VMP50" is a High quality non-sterile microfiber mop.
The Vipers Mop VMP50 has an extremely high quality microfiber trim material made of 100% micro polyester.
Thanks to its special surface structure, this disposable mop convinces with excellent cleaning performance, accurate area performance and a very good price-performance ratio.Material & PropertiesMaterial: Micro Polyester / MicrofiberColor: WhiteLength: 400 mmWidth: 125 mmWeight: 50 g (+/- 5%)ISO 4GMP C/DUptake capacity > 400%, max. 743% (5684 ml/²)Compatible for use with solvents such as IPAPackaging5 pieces in one bag20 bags in a carton (100 pieces)Application areasRecommended for cleaning and decontamination of GMP rooms/ cleanroom environmentsCleanroom mop with pockets, for 40 cm mop systems
Highest cleaning performance due to high quality microfiberHigh area performance due to multi-layer liquid reservoir
Uniform and ideal liquid release
PU:
Bag with 50 Pieces
Available
The "VIPERS® StarSat VPC68" cleanroom wipe is a sterile, IPA-impregnated nonwoven wipe in a resealable bag.
Material & Properties
Material: 55% cellulose / 45% polyester
Length: 230 mm
Width: 230 mm
Thickness: 0.30 mm ± 0.02 mm
Colour: white
Basic weight: 68 g/m2
ISO 5
GMP C/D
Edge cut: laser cut
70 % IPA (isopropyl alcohol) and 30 % deionised water (DIW)
Absorption capacity: 288 ml/m2
For wiping and cleaning in critical environments
Increases solvent control and accountability
Packaging
50 pieces in a resealable bag
24 sachets in a carton
PU:
6 x 1L
Variant:
1 liter spray bottle
Das "InSpec N10" ist ein leistungsfähiges alkalisches Reinigungsmittel für Reinraumwände, Fußböden,Decken und Arbeitsflächen.Speziell für Permanentklebematten entwickelt.Es wird für die Entfernung von Prozessrückständen und allgemeinen Verschmutzungen verwendet. Es ist ein ausgezeichneter Reiniger, hinterlässt aber mehr Rückstände als N7.Gebrauchsfertige Sprühflasche, mit WFI Wasserqualität verdünnt.
Material & Eigenschaften
Material: 4%iges alkalisches Reinigungsmittel
Farbe: hellgelb
ISO 5
zur Reinigung von Hand geeignet
Nach dem Öffnen validierte dreimonatige Haltbarkeitsdauer
2 Jahre Haltbarkeit
Anwendung
Nicht steriles InSpec N10 ist zur Reinigung harterFlächen durch Sprühen, Wischen von Hand und mit Mopp ausgelegt. Sprühstrahl mit etwa 15-20 cm Abstand aufbringen. 5-l-Versionen, zum Wischen mit Mopp in geeigneten Behälter gießen. Für Mopp-Anwendung 100 ml Konzentrat zu 2,5 l Wasser hinzufügen. Auf Fläche aufbringen, für vollständige Flächendeckungsorgen.
Verpackung
6 Flaschen in einem Karton
PU:
Bag with 600 pieces
Format:
ca. 10 x 10 cm
The cleanroom wipe "Vipers P140" is an ultra-soft knitted polyester wipe with a high filament count. This makes it softer and more absorbent than conventional polyester wipes.
Material & Properties
Material: Polyester
Dimensions: 10x10 cm, 15x15 cm or 23x23 cm
Basic weight 140 g/m²
Colour white
Thickness 0,38 mm
ISO 5
Edges ultrasonically sealed
Solvent resistant
Extremely low linting and very low particle emission
Absorption capacity 415 ml/m
Uptake speed ≤ 1.0 sec.
PU:
Bag with 100 pieces
Available
Format:
ca. 23 x 23 cm
The "Cleanroom Wipe VIPERS® TiO2-F" is manufactured with double knitted continuous filament made of polyester. The special feature of this wipe is that it is free of titanium oxide.
Material & Properties
Material: Polyester
length: 10 cm
Width: 10 cm
Thickness: 0,35-0,45 mm ± 0,05 mm
Colour: white
Basis weight: 140 g/m²
ISO 4
Double knit endless filament
Free of titanium oxide (TiO²)
Edges ultrasonic and laser welded
Absorbency: 180 ml/m²
High absorbency and wiping performance
Control of submicron particles and chemical residues
Double and vacuum packed in clean room
Packaging
600 wipes in a bag
10 bags in a carton ( 6000 wipes)
PU:
Bag with 30 wipes
"PROSAT 911" Wipes bestehen aus 100 % Polypropylen-Tüchern, die mit einer Lösung aus 70 % Isopropanol-Alkohol und 30 % deionisiertem Wasser in einem wiederverschließbaren Beutel getränkt sind.
Der Beutel lässt sich leicht öffnen und die Wischtücher können einfach entnommen werden.
PROSAT Wipes verwenden ein schmelzgeblasenes Polypropylen-Tuch, das außergewöhnlich sauber ist, da es frei von jeglichen Additiven ist und eine sehr geringe Natriumkonzentration aufweist. Erhöhen Sie die Lösungsmittelkontrolle und -nachweisbarkeit und reduzieren Sie die VOC-Emissionen. Kompatibel mit Reinräumen der ISO-Klasse 5.
Material & Eigenschaften:
Material Wischtuch:Polypropylen
Wischtuch-Konstruktion:Schmelzgeblasener Vliesstoff
Sättigungslösung; (Mischungsverhältnis und Inhaltsstoffe): 70% Isopropylalkohol / 30% entionisiertes Wasser
230 x 280 mm
Verpackung:
30 Tücher im Innenbeutel
10 Beutel im Außenbeutel
5 Außenbeutel im Karton ( 1500 Tücher)
