Cleanroom wipes are a very important accessory when cleaning cleanrooms. Due to the high demands, it is very difficult to find the right wipes.
Our lineup includes polyester, microfiber and polyester-cellulose products that have been proven in controlled zones, including Bemcot fabrics, as well as presaturated cleanroom wipes. Since the use can be costly, it was important to us to select high quality products at an economical price.
We are happy to assist you in choosing a suitable cleanroom wiptes with our consulting team.
Filter
–
PU:
Bag with 400 pieces
Format:
ca. 10 x 10 cm
The "FG Compo Wipe 7408" is a cleanroom wipe made of multiple layers. This multilayer composite of different components is built up in three layers - polypropylene and cellulose. These have been thermally bonded. This results in a synergy of both materials. The outer polypropylene layer transfers the moisture to the inner cellulose core. This absorbs the liquid excellently and stores it. The polypropylene thus retains a "dry" surface, while the inner cellulose core retains most of the liquid.
The Comp Wipe 7408 is abrasion resistant, durable and soft. The sandwich process makes it very effective for use with acids in the cleanroom.
Material & properties
Material: 55% cellulose, 45% polypropylene
Colour: white
Basis weight: 88 g/m²
Thickness: 0.69 mm
ISO 5
Low particle
Very effective when used with acids
Packing
400 Wipes in a bag
12 Bags in a carton
PU:
10 bags with 20 Wipes
Das sterile (gamma sterilisiert) vorgefeuchtete Reinraumtuch "PROSAT PI PS-314IR-BPR" von Contec bestehen aus gespaltenen Mikrofaser aus Polyester und Nylon, die die Reinigungswirkung und die Fähigkeit zur Aufnahme von Verunreinigungen verbessert.Das Mikrofasergewebe besitzt ein hohes Absorptionsvermögen und gibt den Alkohol dosiert an die Oberfläche ab. Durch die dosierte Abgabe ist die Oberflächenabdeckung pro Wischtuch größer als bei anderen vorgetränkten Wischtüchern mit vergleichbarem Gewicht.
Material & Eigenschaften
70 % Polyester / 30 % Nylon
Farbe Weiß
Basisgewicht 80 g/m2
In deionisiertem Wasser: 0,034 g/m2
In Isopropanol: 0,017 g/m2
Partikel P > 0.5µm; (x106/m2): 11.20
Fasern > 100µm; (x103/m2): 11.96
Reinraumklasse ISO 5
GMP A/B
Gammasterilisiert SAL 10-6
Wasserstrahlverfestigte Mikrofaser
Schwere Mikrofaser
in 1 Minute gegen Bakterien und in 3 Minuten gegen Hefepilze wirksam
gemäß der EU- und GB-Verordnung über Biozidprodukte zum Verkauf zugelassen. (Contec IPA wipes : EU 0020460 0002 1-2)
Flacher, wiederverschließbarer Beutel
Einsatzgebiete
Pharmazeutische Industrie
Biotechnologie
Medizintechnik
Verpackung
1 Innenbeutel mit 20 Tüchern
10 Innenbeutel in 1 Außenbeutel (steril)
4 Außenbeutel im Karton (800 Tücher)
PU:
Carton with 8x50 pieces
Available

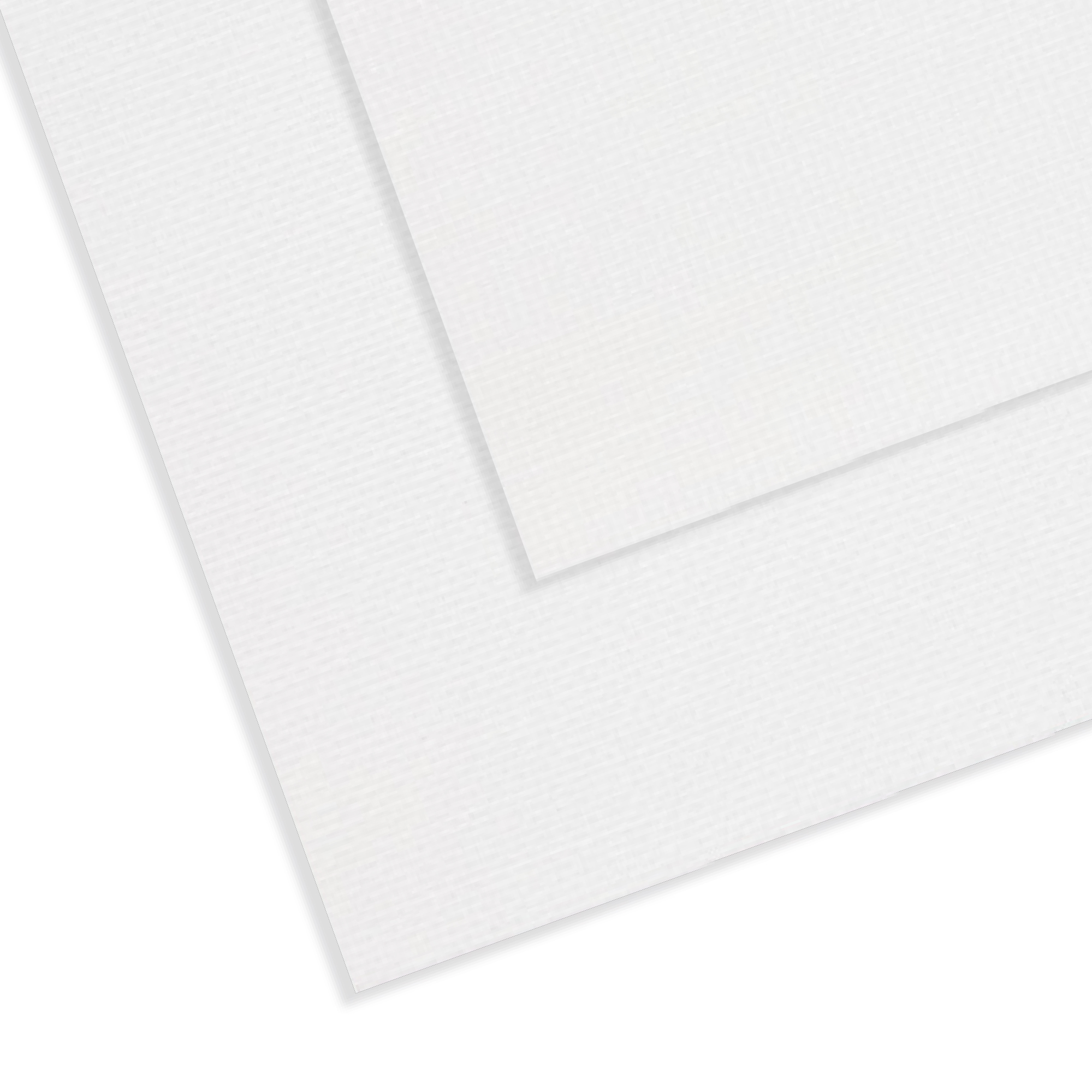

The "Veraclean Soft Plus" cleaning cloth is an extremely low-linting cloth which is soft, strong and long-lasting.Due to its open structure, it easily absorbs water, oil and ink.
Material & Properties
Material: 97 % rayon (viscose) / 3 % polymer binder
Length: 530 mm
Width: 430 mm
Thickness: 1,93 mm (4 layers)
Colour: white
Absorption capacity: 1050%.
Basis weight: 50 g/m2
Formerly TRIKO-TEX
Strong and durable
Soft and cuddly
Unique open structure
Extremely low linting
Absorbs water, oil and ink easily
Silicone-free
Resistant to most solvents and chemicals
Packaging
50 wipes in a bag
8 bags in a carton (400 wipes)
PU:
Carton with 55 x10 Wipes

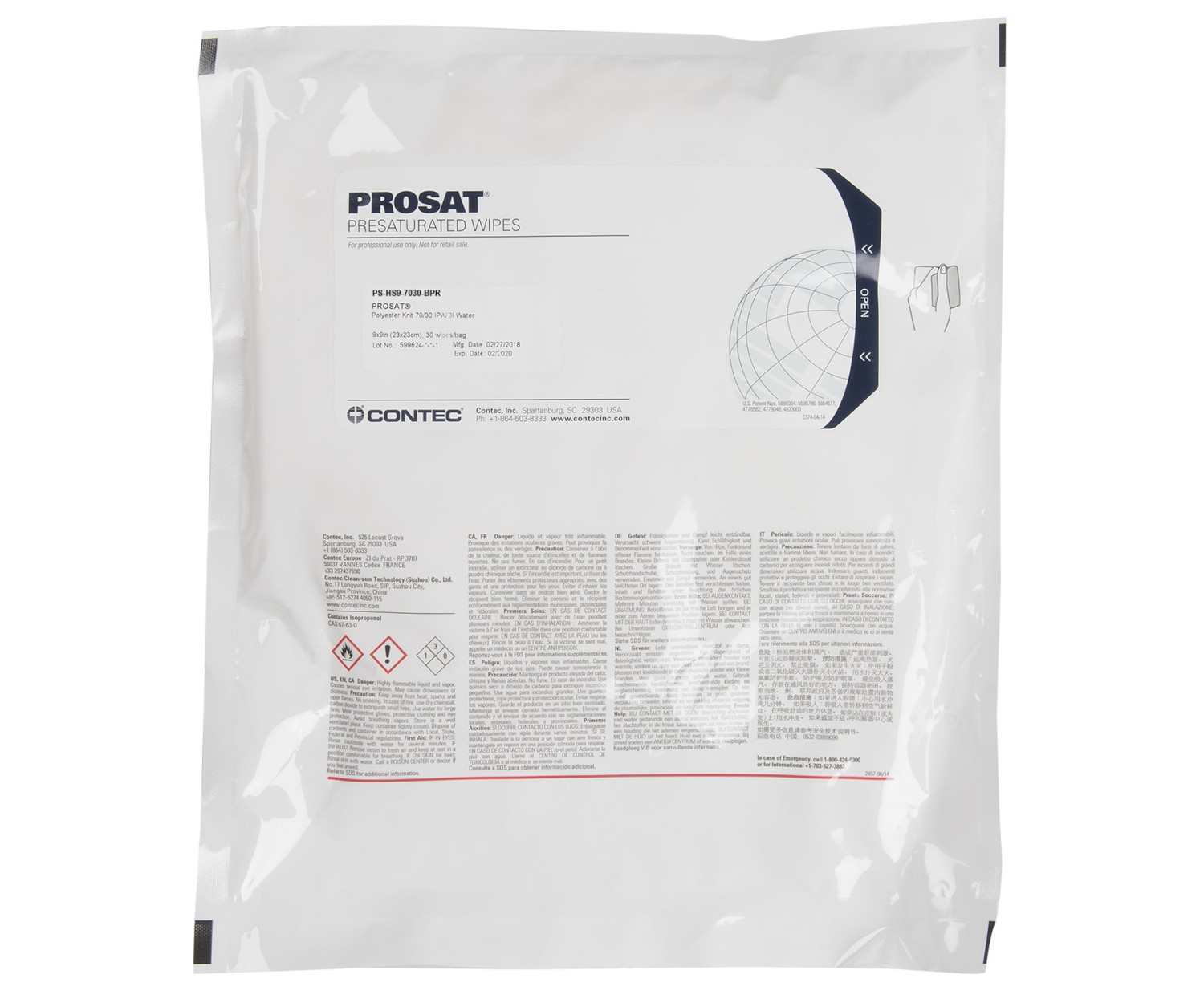

Die PROSAT® Sterile Polynit Heatseal LE Wischtücher bestehen aus 100 % Polyestergewirk Polynit Heatseal und sind mit einer Mischung aus 70 % IPA und 30 % Wasser für Injektionszwecke (WFI) vorgetränkt. Jede Lieferung wird vor ihrer Freigabe geprüft und auf einen niedrigen Endotoxingehalt von unter < 1 Endotoxineinheit/Tuch zertifiziert.Die versiegelten Ränder des Wischtuchs sorgen dafür, dass nur wenig Partikel und Fasern entstehen. Es ist somit ideal zur Nutzung auf produktberührenden Flächen geeignet. Jeder wiederverschließbare Beutel enthält eine geringe Anzahl von Wischtüchern, um Abfälle nach der Reinigung zu vermeiden. Jeder Beutel wird dreifach verpackt, um einen leichten Transport in die sterile Umgebung zu ermöglichen.Vorgetränkte Wischtücher bieten zahlreiche Vorteile, darunter Lösungsmittelkontrolle, eine Reduzierung flüchtiger organischer Verbindungen (VOC) sowie erhöhte Prozesskontrolle und Wiederholbarkeit. Mit dem wiederverschließbaren Beutel kann Abfall reduziert werden. Die PROSAT Sterile Polynit Heatseal LE Wischtücher sind als steril validiert und ideal zum Einsatz in aseptischen Umgebungen und kritischen pharmazeutischen Reinräumen geeignet.
Eigenschaften & Vorteile
für Umgebungen der Klasse A/B oder ISO-Klasse 5 empfohlen – produktberührende Bereiche
100 % Polyestergewirk für sehr niedrige Partikel- und Fasermengen
laserversiegelte Ränder reduzieren die Bildung von Fasern an den Rändern des Wischtuchs
garantierter Endotoxingehalt von < 1 EU/Einheit und so ideal für produktberührende Oberflächen
kleine Anzahl an Wischtüchern je wiederverschließbarem Beutel, um Abfall zu vermeiden
hängende Beutel mit geringer Größe sind verfügbar und somit ideal für den Gebrauch in Isolatoren und RABS geeignet
vorgetränkte Wischtücher reduzieren VOC-Emissionen und den Verbrauch von Lösungsmitteln
der wiederverschließbare Beutel erhält die Reinheit und den Sättigungsgrad des Lösungsmittels
PU:
Box with 1250 pieces

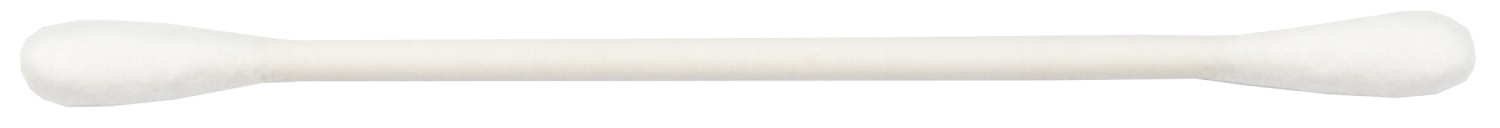

"Cleaning Stick/Swab Huby-340 CA-002" with double round head.
This extremely absorbent swab is perfect for use in precision areas such as the laser and optics industry due to its shape. The cotton material is naturally very chemical resistant and is well compatible with various solvents.
Material & properties
Material head: Cotton
Material handle: wood
Diameter head: 4.4 mm
Diameter handle: 2.5 mm
Length head: 15 mm
Length of handle: 73 mm
Total length: 77.5 +- 0.5 mm
double half-round head
Packaging
1250 pieces in a box
20 boxes in one carton
PU:
Bag with 10x10 pieces
Available
The cleanroom wipe "Vipers SP140" is an ultra-soft polyester knitted wipe, with a high filament count. This makes it softer and more absorbent than conventional polyester wipes.
Material & Properties
Material: Polyester
Length: 230 mm
Width: 230 mm
Basic weight 140 g/m²
Colour white
Thickness 0,38 mm
ISO 5
GMP A/B
Sterile
Edges ultrasonically sealed
Solvent resistant
Extremely low linting and very low particle emission
Absorption capacity 415 ml/m
Uptake speed ≤ 1.0 sec.
Packaging
10 x 10 wipes in a bag (double packed)
10 bags in a carton
PU:
Bag with 500 pieces
Antistatic "Cleaning Stick/Swab PU3922" with semi-circular 100 ppi polyurethane head.
The foam is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. This swab is free of silicone, amides and phthalates. The head is lint-free and removes residue / particles without scratching the surface.
The handle is compact and does not contribute to particulate or organic contamination.
Washed and packaged to cleanroom class 10 / ISO 4.
Material & properties
Material head: 100 ppi (Z) open cell polyurethane foam
Material handle: polypropylene
Width head: 3.6 mm
Thickness head: 3.5 mm
Length head: 12 mm
Width stem: 3 mm
Length stem: 56 mm
Total length: 68 mm
Compact rigid handle and round inner head core
Head binding Thermally bound
Particle 0.5 µm <6000 counts/swab
No detectable silicone oil, amide or DOP.
Free of silicone, amide and DOP
Low non-volatile residue
Low particle and ion content
Excellent solvent absorption capacity
Compatible with most common solvents
No contaminating adhesives or coatings
Micromechanical cleaning
Remove contaminants from hard disk drives
Effectively clean small, hard-to-reach areas with solvents such as IPA.
Remove flux residues and excess materials.
For general cleaning
Packaging
100 pieces in an inner bag
5 inner bags in an outer bag
50 bags in a carton
PU:
bag with 500 pieces
Available
"Cleaning Stick/Swab 1876-PFB" with paddle-like 100 ppi polyurethane head. This swab can be used with IPA (isopropanol), DI water or dry. The flexible head is made of medical grade foam and is lint free. Excellent for removing liquids, resins, etc. FDA GMP standard and therefore suitable for medical use.
Material & properties
Head material: soft foam tip
Head bond:bonded with thermoplastic adhesive
Head length: 15.1 mm
Head diameter: 4.8 mm
Handle material: polypropylene
Handle diameter: 3.1 mm
Handle length: 150.4 mm
Total length: 152.4 mm
Paddle-like/ spatula-like 100 ppi polyurethane head
Can be used with IPA (isopropanol), DI water or dry
Flexible head, semi-flexible handle
Suitable for medical use
Cleanroom class (recommended)ISO 6 / class 1.000
Spatula-shaped foam tip, blue polypropylene handle
Lint-free and residue-free
Soft, abrasion-resistant foam
Can be used with IPA or DI water or dry
Application of solutions or solvents
Easily removes dirt, contaminants, fluxes or resins
General cleaning
Packaging
50 pieces in a resealable polybag
20 bags in a carton
PU:
50 pieces
"Cleaning Stick/Swab 1273-PF ESD" with flat semicircular polyurethane head.
The foam is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. The soft head is lint-free and removes residue/particles without scratching the surface. Can also be used to apply adhesives and other liquids. The swab has a surface resistivity of <1x1011 Ω and is excellent for use in semiconductor , laser, electronics and medical applications.
Material & Properties
Material head: Static dissipative foam
Material handle: Stat-Rite® static dissipative polypropylene
Diameter head: 4 mm
Diameter handle: 2.3 mm
Length head: 14,2 mm
Length of handle: 67.5 mm
Total length: 68 mm
Surface resistance <1 x 1011
ESD properties (permanently retained)
Low ionic contamination
Connection: Thermal weld seam
Application of adhesives or other fluxes
Removal of particles and residues.
Application in electronics manufacturing and medical technology
Safe for static-sensitive components
Can be used with IPA and DI water or dry
Good water absorption
Non-fluffing
Non outgassing
Non-contaminating
Soft and abrasion resistant
Packaging
50 pieces in a static dissipative resealable poly zip bag20 bags in a carton
PU:
500 pieces

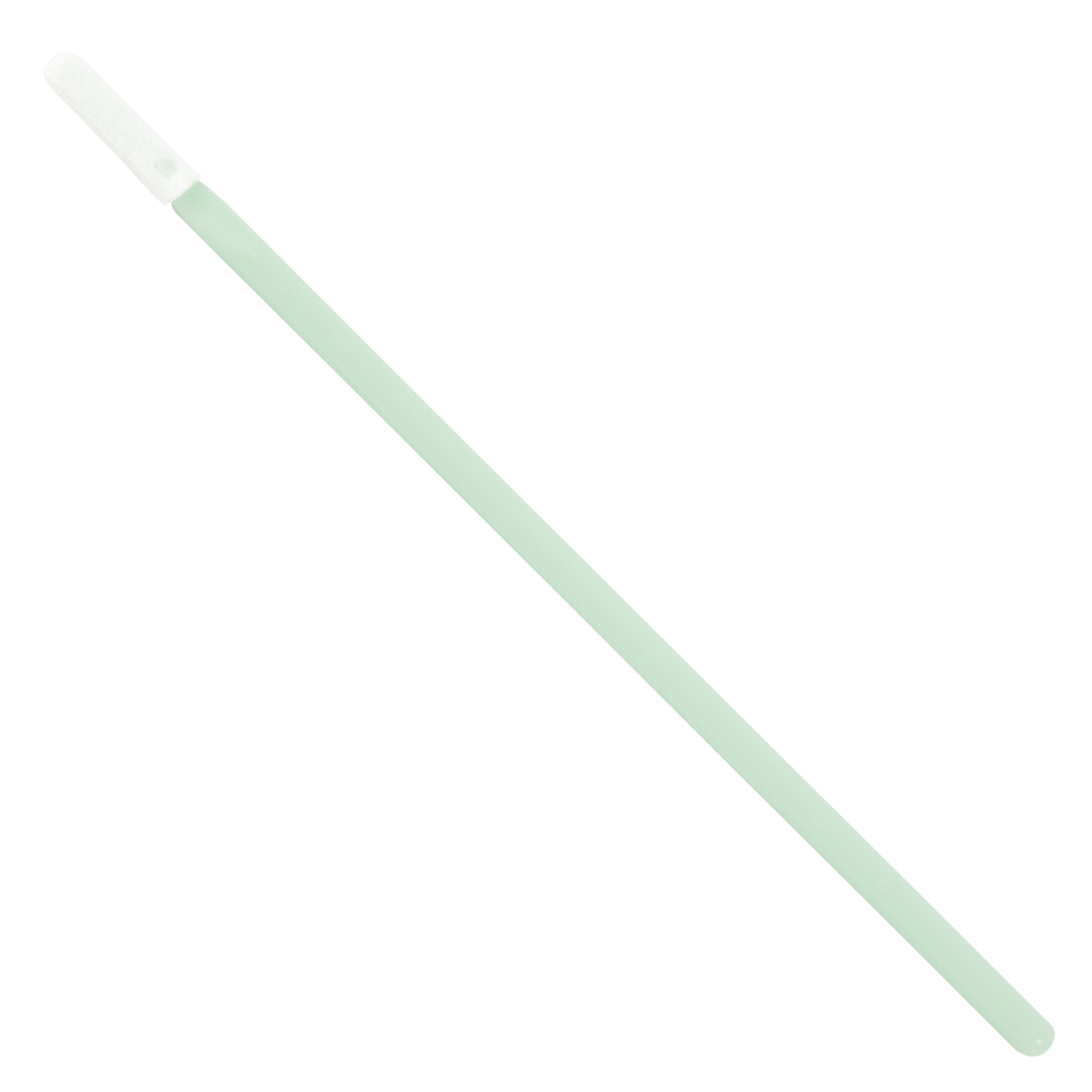

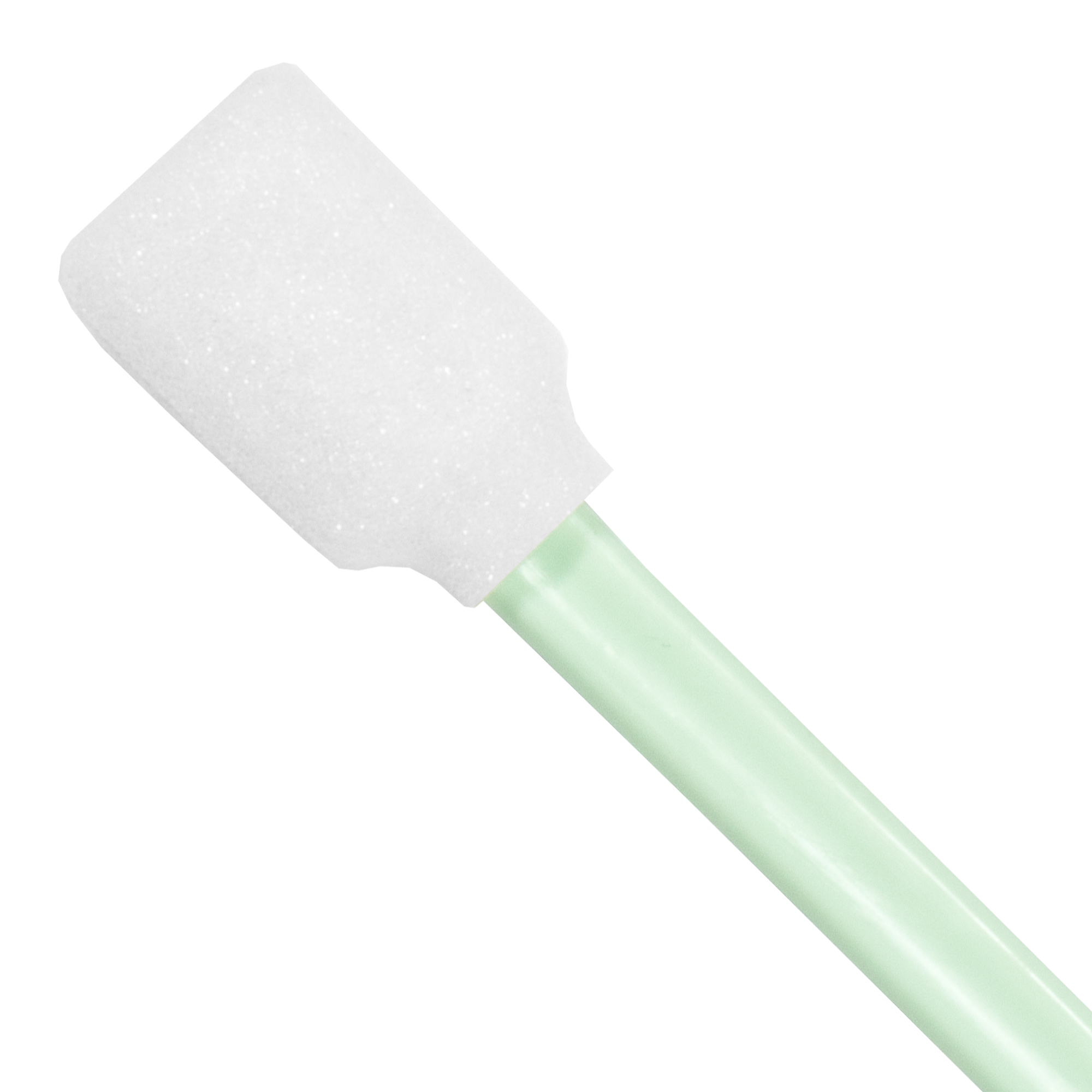

Antistatic cleanroom "cleaning stick/swab PU3921" with paddle-like 100 ppi polyurethane head.
The foam is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. This swab is free of silicone, amides and phthalates. The flexible head is lint-free and removes residue without scratching the surface.
Washed and packed according to cleanroom class 10 / ISO 4.
Material & properties
Head material: 100 ppi open cell polyurethane foam
Head width: 6.2 mm
Head thickness : 5.1 mm
Head length: 19 mm
Head colour: white
Handle material: polypropylene
Handle width: 3.2 mm
Handle length: 73 mm
Handle colour: light green
Head thermally welded to the handle
Total length: 92 mm
Can be used with acetone, IPA and other solutions
Free from silicone, amides and phthalates
Particles 0.5 um <3000 counts/swab
Free from silicone, amide and DOP
Low non-volatile residue
Low particle and ion content
Excellent solvent absorption capacity
Compatible with most common solvents
No contaminating adhesives or coatings
Packaging
500 pieces in a bag
20 bags in a carton
PU:
Bag à 100 pieces

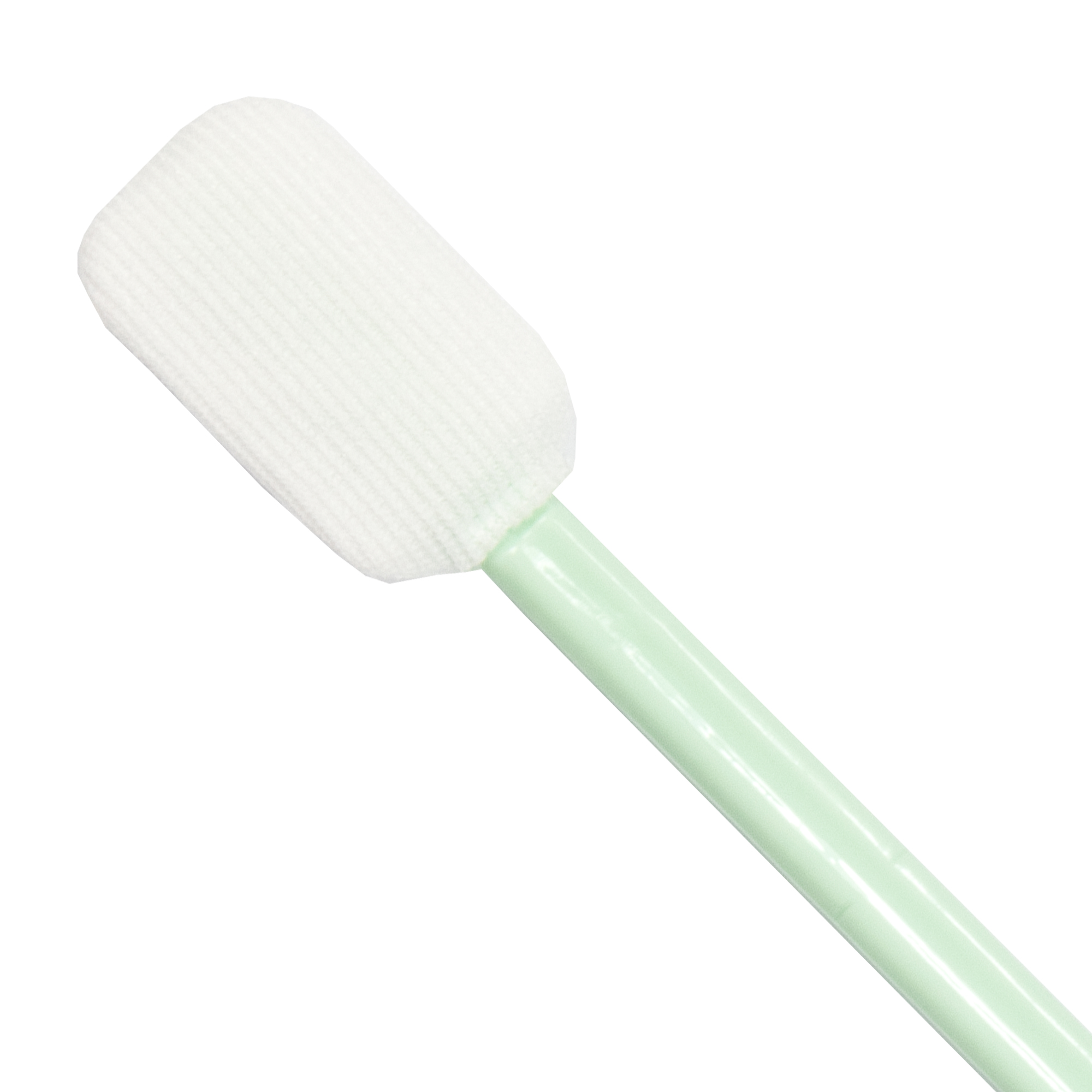

"Cleaning Sticks/ Microfibre Swab PS3901" with paddle head shape. Made of two-layer knitted microfibre and polyester. The outer layer is made of microfibre, the inner layer of polyester - both are free of organic impurities. The cloth is thermally bonded to the handle. Washed and packaged in an ISO Class 5 cleanroom, resulting in low particle and ion content. This swab has excellent compatibility with most common solvents, including acetone, as well as excellent absorbency and solvent resistance. The head is designed for cleaning small, slotted and recessed surfaces. The excellent tilt is controlled and supported by a flexible paddle.
Material & Features
Head material: Double Knitted Microfiber and Polyester
Head weave: Thermally bonded
Head width: 13,0 mm
Head thickness: 4,0 mm
Head length: 24,0 mm
Handle material: Polypropylene
Handle width: 6,6 mm
Handle length: 105,0 mm
Total swab length: 129,0 mm
Free of silicone, amide and DOP
Low non-volatile residue
Low particle and ion content
Good absorbency
Compatible with most common solvents
No contaminating adhesives or coatings
Micromechanical cleaning
Remove contaminants from hard disk drives
Clean small, hard-to-reach areas effectively with solvents such as IPA
Remove flux residues and excess materials
For general cleaning
Packaging
100 pieces in a bag
50 bags in a carton
PU:
Roll with 400 wipes
Variant:
Rolle
DuPont's Sontara EC® Cleaning Cloths are low-lint, general purpose, polyester cellulose (non-woven) cloths with exceptional absorbency and strength that are excellent for many cleaning and preparation tasks in electronics industry environments, maintenance and repair, and any application where a solvent is used. These include aviation, manufacturing, painting, automotive and machine repair, printing, graphic arts and many more.
Whether dry, damp or wet, Sontara EC® wipes are more versatile than cloth rags, stronger and more durable than paper, and less expensive to use than either. They are manufactured under strict controlled production conditions to ensure consistent quality, size and packaging.
Material & Properties
Material: 52% cellulose / 48% polyester
Length: 305 mm
Width: 380 mm
Colour: white
Resistant and durable both dry and wet
Recognised safety for direct contact with foodstuffs
Easy to wash
Inexpensive enough to be used as a disposable wipe
Absorbent - absorbs up to 4 times its own weight in water
Can be used dry
Absorbs oil and solvents
Low linting
No additives that contaminate the surface
Soft enough for polishing and finishing (refining)
Resistant to MEK (methyl ethyl ketone = butanone, a solvent often used in industry), isopropyl alcohol (IPA) and other solvents or cleaning agents
Economical
Packaging
400 pieces to tear off on a roll
PU:
Carton with 12 Bag à 4 x 25 pieces
Contec's "ReFIBE wipes" are made from 100% recycled plastic bottles, making them a sustainable disposable option for critical manufacturers in the life sciences, pharmaceutical, medical device and semiconductor industries. The revolutionary recycling process converts plastic into 100% continuous filament polyester, the same substrate used in many of Contec's standard polyester wipes and mops. 840 bottles are recycled per Karton. Processed as synthetic polyester in an interlock knit, ReFIBE wipes are exceptionally clean and compatible with a wide range of cleanroom solutions and disinfectants. Like Contec's standard polyester wipes, ReFIBE is washed and packaged in an ISO 4 cleanroom. ReFIBE wipes contain few releasable particles and fibres and can be used in place of traditional polyester to ensure sustainability without compromising quality or performance.
Material & Properties
Material: 100% recycled polyester
Length: 230 mm
Width: 230 mm
ISO 3
GMP A/B
sterile
Packaging
One VE = 4 x 25 wipes = 100 wipes per BTL
12 bags of 4 x 25 wipes per box = 1200 pieces
PU:
Bag with 500 pieces
The semicircular flat head of the "Cleaning Stick/Swab PS 3912" is made of two-layer woven polyester and is thermally bonded to the handle - without the use of contaminating glue. The head is particularly suitable for cleaning small, slit and recessed areas.
Material & Features
Head material Single knitted polyester
Head weave Thermally bonded Head width 4.0mm
Head thickness 2,5 mm
Head width 4.0 mm
Head length 11.0 mm
Handle material Polypropylene
Handle width 2.3 mm
Handle length 59.0 mm
Total length 70.0 mm
Contamination characteristics
Particles, easily detachable
Particles 0.5 µm <3000 counts/swab
Free of silicone, amide and DOP
Low non-volatile residue
Low particle and ion content
Good absorbency
Compatible with most common solvents
No contaminating adhesives or coatings
Applications
Micromechanical cleaning
Remove contaminants from hard disk drives
Effectively clean small, hard-to-reach areas with solvents such as IPA
Remove flux residues and excess materials
For general cleaning
Packaging
1 inner bag with 100 swabs
5 inner bags in an outer bag
50 bags in a carton
PU:
Bag with 50 pieces
Format:
40 x 25 cm
Die "Zyto Arbeitsunterlage ChemPrep steril" (Hersteller-Code: S-BCPM) ist eine sterile Arbeitsunterlage für den Umgang und die Zubereitung von Zytostatika. Die fusselarme und latexfreien 3-Lagen-Konstruktion besteht aus einer Netzoberschicht für eine gleichmäßige Verteilung der Verschüttungen, einer hoch saugfähigen Mittelschicht und einer undurchlässigen Unterschicht.
Material & Eigenschaften
Material Obere Lage: Polyethylen
Material Mittlere Lage: Airlaid-Papier
Material Untere Lage: Polyethylen
Farbe: blau
Basisgewicht: 210 g/m2
ISO 5
GMP A
Latexfreier 3-Schicht-Aufbau
Hochabsorbierende Mittelschicht
Undurchlässige untere Schicht
Verpackung
Ein Stück pro verschweißtem inneren PE-Beutel
ein Innenbeutel pro zweiten PE-Beutel
50 Doppelbeutel pro verschweißtem PE-Außenbeutel
vier Außenbeutel pro gefüttertem
Karton (200 Stück)
PU:
Box with 2500 pieces
The "Cleaning Stick/Swab Huby-340 BB-003" made of pressed cotton and pinned paper with a fine double pointed head.Due to its shape, this extremely absorbent swab is perfect for use in precision areas such as the laser and optics industry.The material construction wool is by nature very chemical resistant and is well compatible with various solvents.
Material & properties
Material head: cotton
Material handle: pressed paper
Diameter head: 3 mm
Diameter of handle: 1.5 mm
Length head: 11 mm
Length of handle: 73 mm
Total length: 79 +- 1 mm
double hard head
Packaging
25 pieces in a bag
100 bags in a box
20 boxes in a carton
PU:
100 pieces
"Cleaning Stick/Swab PS3605" with semi-circular two-ply knitted polyester head.
This swab has a symmetrical round tip with an injection moulded white polypropylene handle that is ultrasonically welded. It is abrasion resistant and lint free, making it a reliable cleaning applicator for your cleanroom or critical environment.
The Swab can be used for cleaning residues/particles on scratch sensitive surfaces. Especially optimal in optics, laser or micro technology. This swab has good chemical resistance and can be used with isopropanol, acetone etc. without hesitation.
Material & Properties
Material head: Washed, two-ply knitted polyester
Material handle: Polypropylene
Diameter head: 5.15 mm
Diameter stem: 3.05 mm
Length head: 19,84 mm
Length of handle: 149,23 mm
Total length: 152.4 mm
semicircular two-ply knitted polyester head
Symmetrical round tip
Non-abrasive
Ultra-silenced edges
Good wear resistance
Can be used with IPA, acetone or other solvents
Chemically resistant
Low non-volatile residues
Low particle formation
Lint-free
Application of adhesives or other liquids.
Removal of residues and particles
Bonding Ultra-welded
Packaging
100 pieces in a dual-packed bag
10 bags in a carton
PU:
Bag with 75 pieces

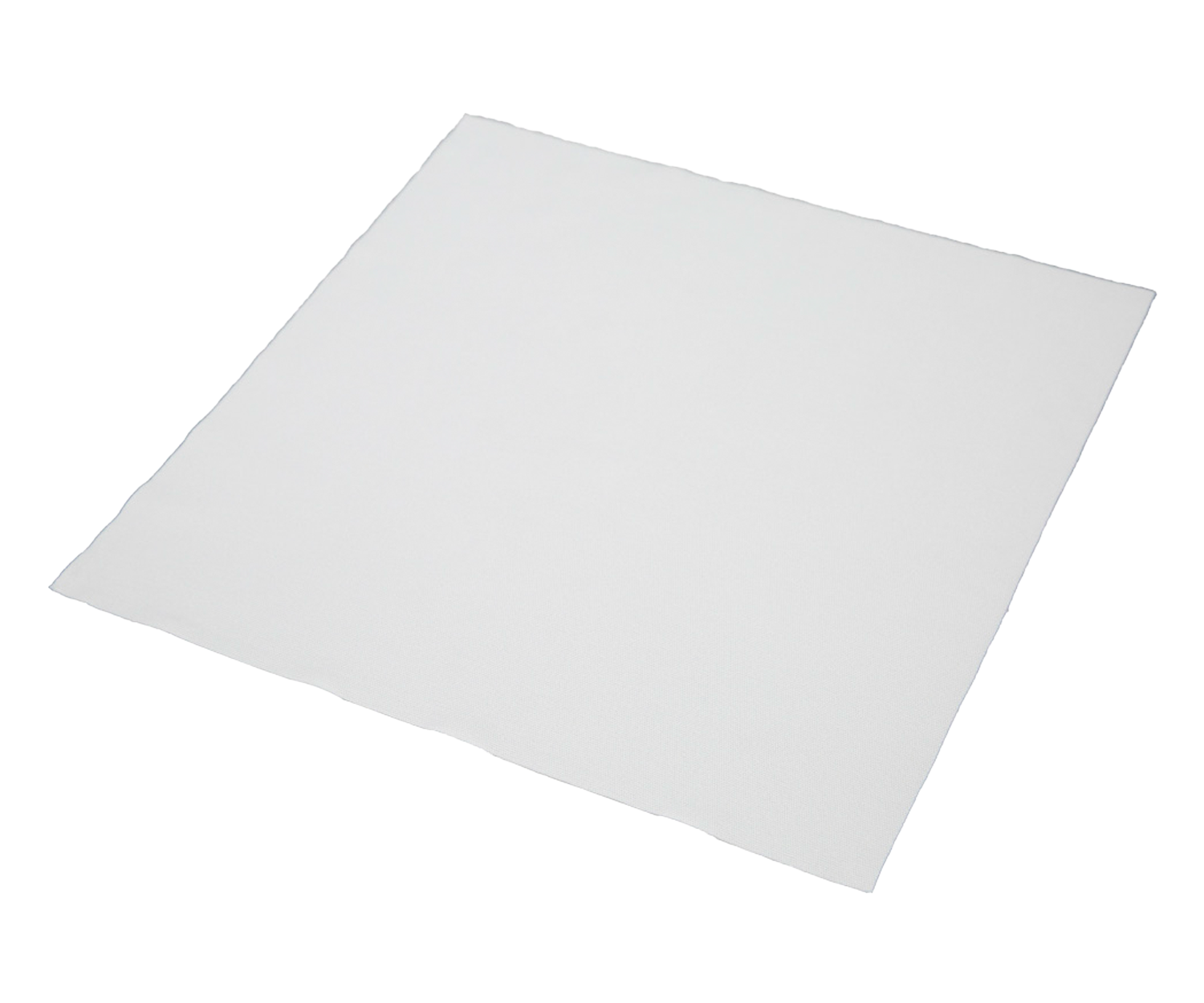

Das "Reinraumtuch Amplitute EcoCloth" ist ein Wischtuch aus 53% Polyester und 47% Zellulosegewebezeichnet sich durch eine verbesserte Saugfähigkeit und Haltbarkeit aus. Die Saugfähigkeit übersteigt vergleichbare Zellulose-/ Polyester-Tücher. Enthält wenig Partikel und extrahierbare Stoffe und zeichnet sich durch eine hohe Lösemittelverträglichkeit aus.Ideal zum Abwischen von Produkten vor der Einführung in den Reinraum.
Material & Eigenschaften
Material: 53% Zellulose 47% Polyester
Länge: 460 mm
Breite: 460 mm
Farbe: weiß
ISO 6
GMP C/D
Geringer Anteil an Partikeln und Fasern
Ausgezeichnetes Adsorptionsvermögen
Gute Lösemittelverträglichkeit
Verpackung
75 Tücher in einem Beutel
10 Beutel in einem Karton
PU:
6 bags with 100 wipes each
Available
The sterile "PROSAT Vial Wipes HCPS6044" vial wipe is made of 100% Nowoven polyester pre-saturated with a mixture of 70% IPA and purified water.
It has a low particle release and is therefore ideal for use in cleanrooms.
The small high quality wipes can be used in place of sterile, individually packaged alcohol prep wipes which generate more waste and particles.
The flat peel and re-seal packaging offers both quick access and easy closure and requires minimal space, making it suitable for small cleanrooms such as isolators.
Material & Properties
Material: 100% PolyesterLength: 100 mmWidth: 100 mmBasic weight: 67 g/m2ISO 5GMP A/BPre-saturated with 70% IPA and 30% purified waterReduces VOCsControlled saturation levelEffective and fast drying disinfectionReclosable bag
Packaging
60 wipes in a resealable inner bag.4 inner bags in an outer bag2 outer bags in a sterile outer bag3 outer bags in a box (1440 wipes)
PU:
Bag with 150 pieces
Available
The cleanroom wipe "Vipers P140L" is a double woven polyester wipe with high abrasion resistance.All edges are laser welded to minimise particle and fibre shedding.
Pre-wetting a bag once saves reprocessing costs and ensures pre-moistened wipes are always ready to hand.The low liquid release enables cleaning during operation with little or no risk of accidents.Replacing the cloth after 6m² with a new one prevents contamination carry-over.Can be used on both smooth and perforated floor coverings.
Material & Properties
Material: Polyester
Length: 580 mm
Width: 230 mm
Thickness: 0.48 mm
Colour: white
Basic weight: 140 g/m2
ISO 5
Edge cut: laser welded
Absorption capacity: 320 ml/m2
Uptake speed: ≤ 0,5 sec
Packaging
150 wipes in a bag
6 bags in a carton
PU:
Bag with 50 pieces
The cleanroom wipe "Vipers MF200" has a silk character and is suitable for very sensitive surfaces.It consists of polyester/nylon micro denier continuous filament and impresses with its very low particle emission, residue and ion content.
Material & Properties
Material: Polyester/nylon blended fabric (microfibre).
Length: 230 mm
Width: 230 mm
Colour: white
Thickness 0.43 ± 0.05 mm
Basic weight 197 g/m²
ISO 4
RoHS compliant
Washable and autoclavable
Ideal for applications requiring maximum cleanliness
Superior wiping performance for cleaning delicate components or surfaces
Double packed
Edge cut laser sealed
Absorption capacity ≤ 300 ml/m2
Absorption speed ≤ 3 sec.
Packaging
100 wipes in a double packed bag
10 bags in a carton (1000 wipes)
PU:
Tub with 130 wipes

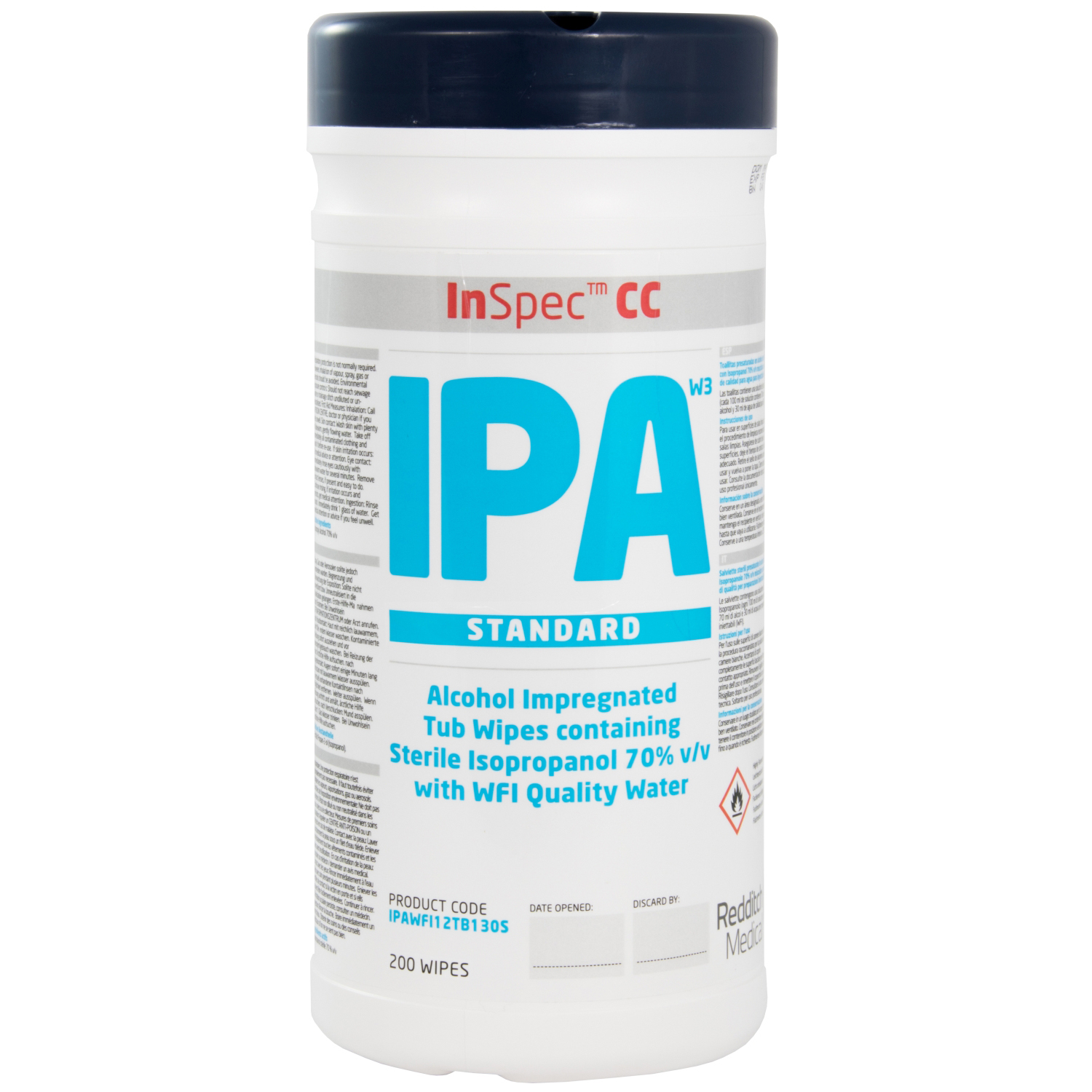

The "Inspec Premium Tub Wipes" are sterile, ready-to-use disinfection wipes. They are pre-soaked with a mixture of 70% v/v alcohol solution in WFI quality water.
InSpec IPA Wipes, an economical solution for wiping applications.
Material & Properties
Wipes material: Polyester 45% /Cellulose 55%
Pre-soaked: 70% v/v alcohol solution in WFI quality water
Length: 200 mm
Width: 170 mm
Thickness: 290 micron
Colour: white
Dry tensile MD (N/50mm) 117,1 N/m
Dry tensile strength CD (N/50mm) 32,4 N/m
Wet tensile MD (N/50mm) 92.6 N/m
Wet tensile CD (N/50mm) 23,1 N/m
Absorption capacity 612.16%.
Absorption time 1,9s
Packaging
130 wipes in a tub
12 tub in one carton
PU:
Bag with 500 pieces

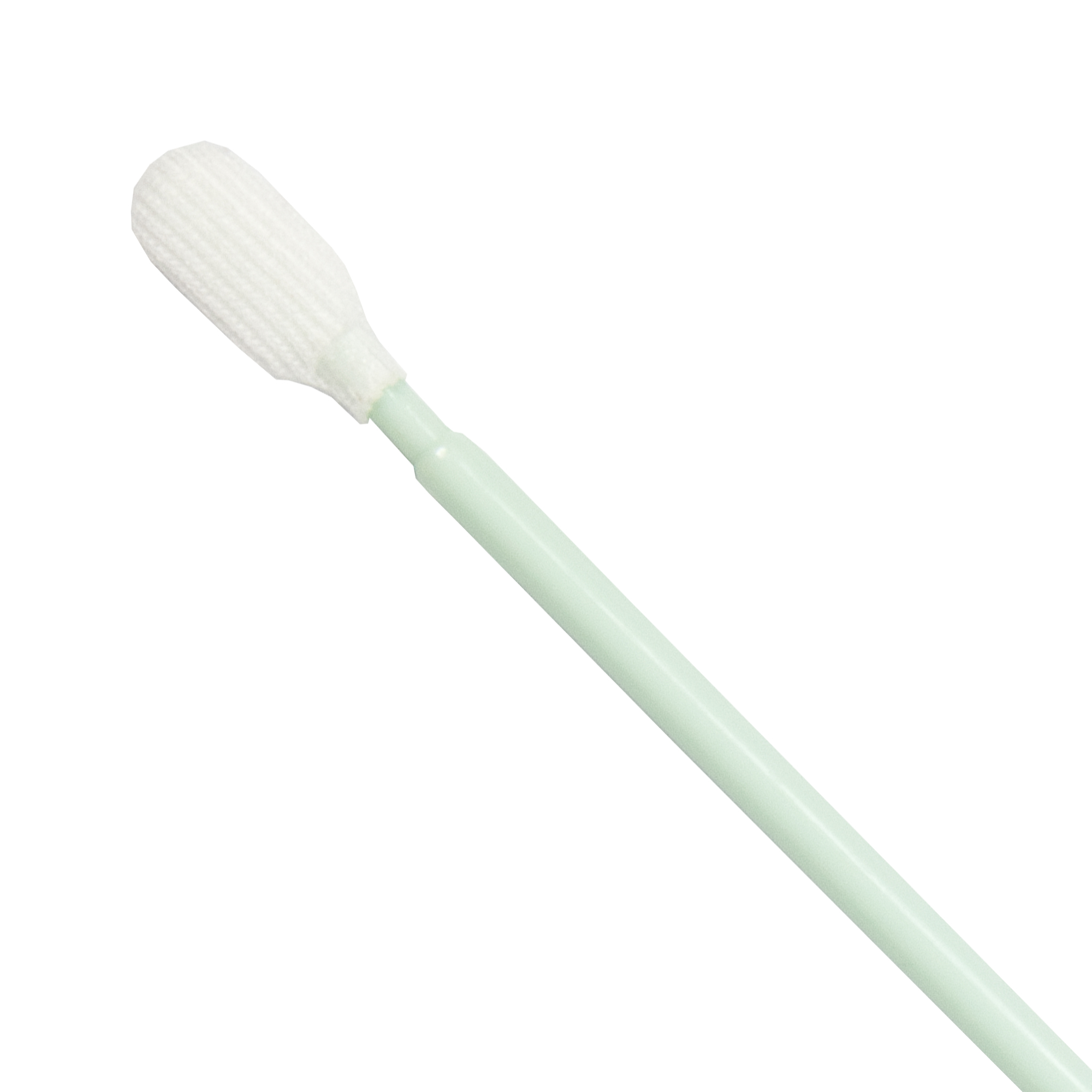

The "Polyester-Swab PS3910" is designed for cleaning small, slotted and recessed areas. Excellent cleaning is controlled and supported with a flexible handle.Made from a two-layer knitted polyester that is free from organic contaminants such as silicone, amides or phthalates.The polyester layers are thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. The polyester, which is washed and packaged in an ISO Class 5 clean room, has low particle and ion content.It has excellent compatibility with most common solvents, including acetone, and excellent absorbency.
Material & Properties
Head material Double Layer Knitted Polyester
Head weave Thermally bonded
Head width 6.0 mm
Head thickness 3.0 mm
Head length 17.0 mm
Handle material polypropylene
Handle width 3.2 mm
Handle length 145.0 mm
Total swab length 162.0 mm
Free of silicone, amide and DOP
Low non-volatile prospects
Good absorbency
Compatible with most common solvents
No contaminating adhesives or coatings
Applications
Micromechanical cleaning
Remove contaminants from hard disk drives
Cleaning of small, hard-to-reach areas using solvents such as IPA
Remove flux residues and other excess materials
For general cleaning
Packing
500 pieces in a bag
10 bags in a carton (5000 pieces)
PU:
Bag with 20 pieces
The "Swab PS713-TOC" is a cleanroom cleaning stick/swab with rectangular and breakable polyester head to easily place the head into a vial without touching it.
The double-knitted cloth is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. This swab is free of silicone, amides and phthalates. The flexible head is lint-free and removes residue / particles without scratching the surface. The material has very good compatibility with various solvents and is excellent for working with acetone.
Range of use:
These low TOC swabs are made of 100% knitted polyester material that is additionally cleaned to make the swabs suitable for use in total organic carbon (TOC) analysis.
Also ideal for use in surface sampling for cleaning validation protocols and for thorough cleaning of hard-to-reach areas or small surfaces.Material & PropertiesSet up for the TOC analysis procedure Ideal for use in surface sampling for cleaning validation protocols TOC content of the swab <50 ppb Head material Double Knitted Polyester Head bond Thermally bonded Head width 12.3 mm Head thickness 3.3 mm Head length 23.0 mm Handle material Polypropylene Handle width 5.8 mm Handle length 100.0 mm Total length 123.0 mm Free of silicone, amide and DOP Low non-volatile residue Low particle and ion content Good absorbency Autoclavable Compatible with most common solvents No contaminating adhesives or coatings Micromechanical cleaning Remove contaminants from hard disk drives Effectively clean small, hard-to-reach areas with solvents such as IPA Remove flux residues and excess materials Particles, easily soluble: particles 0.5 µm <3000 counts/swab Washed and packed in ISO 5 cleanroom Washed with electro-deionized ultrapure waterPackaging20 pieces in one bag250 bags in one carton
PU:
Bag with 300 Pieces
Available
The cleanroom wipe "Vipers PNW68" is a white, hydroentangled, non-woven, spunbonded polyester wipe formed without binders, starches or thermal bonding techniques for a chemically clean surface that is strong, clean and absorbent.
Material & Properties
Material: Polyester Nonwoven
Colour: white
Length: 230 mm
Width: 230 mm
Thickness: 0.45 ± 0.5 mm
Basic weight: 68 ± 4 g/m2
Absorption capacity: > 400 ml/m2
ISO 5
Pliable, highly absorbent and durable
Well suited for IPA and other solvents
Packaged in a class 100 clean room
Non-organic: ideal for applications where microbiological factors are important
Ideal cloth for cleaning surfaces that are susceptible to scratching
Packaging
300 wipes in a bag
8 bags in a box (2400 wipes)
PU:
Bag with 600 pieces
Format:
ca. 10 x 10 cm
The cleanroom wipe "Vipers P140" is an ultra-soft knitted polyester wipe with a high filament count. This makes it softer and more absorbent than conventional polyester wipes.
Material & Properties
Material: Polyester
Dimensions: 10x10 cm, 15x15 cm or 23x23 cm
Basic weight 140 g/m²
Colour white
Thickness 0,38 mm
ISO 5
Edges ultrasonically sealed
Solvent resistant
Extremely low linting and very low particle emission
Absorption capacity 415 ml/m
Uptake speed ≤ 1.0 sec.
PU:
Bag with 6x25 wipes
Format:
ca. 30 x 30 cm
Das "Reinraumtuch SterileSorb C2" besteht aus einer wasserstrahlverfestigten Mischung aus 55 % Zellulose und 45 % Polyester. Es ist stark absorptionsfähig und besitzt eine ausgezeichnete Haltbarkeit und gute Reinheit. Das SterileSorb kann sowohl feucht als auch trocken verwendet werden und ist dabei ein starkes und langlebiges Wischtuch, das für die allgemeine Reinigung und zum Aufnehmen von Verschüttungen verwendet werden kann.
Material & Eigenschaften
Material: 55 % Zellulose und 45 % Polyester
Länge: 300 mm
Breite: 300 mm
Basisgewicht: 68 g/m²
ISO 5
GMP A/B
auf einen SAL von 10-6 steril validiert
ausgezeichnet geeignet zum Wischen und Aufsaugen
sowohl im feuchten als auch im trockenen Zustand widerstandsfähig und langlebig
Wischtücher aus wasserstrahlverfestigter Zellulose/Polyester besitzen niedrige Mengen an Partikeln und extrahierbaren Substanzen
kostengünstiges Wischtuch für den allgemeinen Gebrauch
Chargennummern auf dem Innen- und Außenbeutel gewährleisten die Nachverfolgbarkeit
in sterilen, abziehbaren Außenbeuteln und einem längsseitig aufreißbaren Innenbeutel verpackt, damit diese selbst mit Handschuhen problemlos geöffnet werden können
Verpackung
25 Tücher in einem Innenbeutel
6 Innenbeutel in einem Außenbeutel
7 Außenbeutel in einem Karton (1050 Tücher)
PU:
Bag with 100 pieces
The "Cleanroom wiper VIPERS® R35" is a lightweight, thin non-woven wipe with extremely high absorbency for fast liquid absorption.
Material & Properties
Material: 50% Rayon / 50% PET (Polyethylene terephthalate)
Length: 250 mm
Width: 250 mm
Thickness 0.22 +/-10% mm
Basis weight 35 g/m² ± 3 g/m²
Colour white
Steam autoclavable
Quarter folded
Edge cut Laser cut
Absorption capacity 300 ml/m²
Uptake speed < 1.0 sec.
ISO 6
Packaging
100 pieces in a bag
30 bags in a carton (3000 pieces)
PU:
300 Pieces

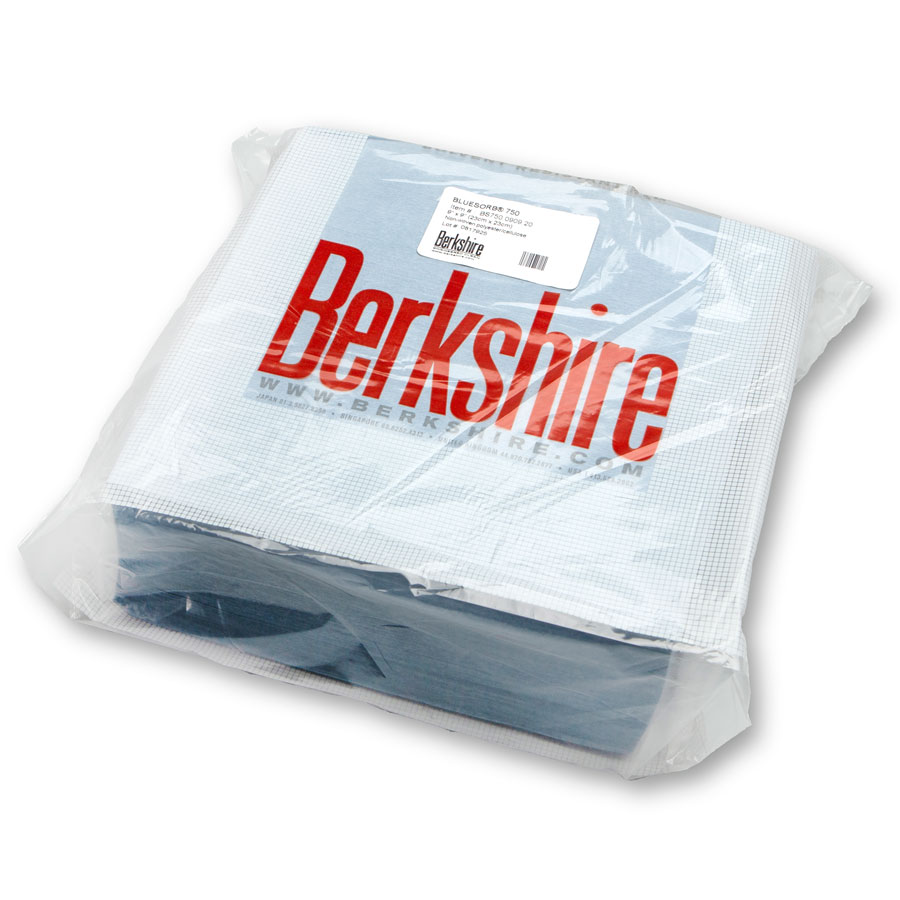

Bluesorb® 750 ist ein Vliestuch aus Zellulose / Polyester, das für Umgebungen der ISO-Klasse 5 und höher empfohlen wird und aus einer wasserverfestigten Vliesmischung aus 55 % Zellulose und 45 % Polyester besteht, die mit einer blauen Farbe versehen ist. Diese Kombination von Eigenschaften verleiht BlueSorb® 750 den Grad an Sauberkeit, Saugfähigkeit, Abriebfestigkeit und chemischer Kompatibilität, der für allgemeine Wisch- und Leckagekontrollanwendungen erforderlich ist. Die blaue Farbe ermöglicht die Unterscheidung in kritischen Bereichen.
Haupteigenschaften
55% Zellulose / 45% Polyester hydroverfestigte Vliesmischung
Blaue Farbe
Keine Bindemittel
Vorteile
Hervorragende Kombination aus synthetischer Polyesterstärke und Sauberkeit mit den absorbierenden Eigenschaften von Zellulose
Die blaue Farbe ermöglicht eine Unterscheidung zur Verhinderung der Migration in kritische Bereiche
Die blaue Farbe bietet eine Hintergrundunterscheidung für die Produktprüfung
Geschmeidig, saugfähig und langlebig
Geringe extrahierbare Mengen und Partikelzahlen
Autoklavierbar
Wirtschaftlich
*Chemisch verträglich mit gängigen Reinigungs- und Desinfektionslösungen *Nicht empfohlen für Anwendungen, bei denen 100% Wasser verwendet wird - das Material ist möglicherweise nicht farbecht
Anwendungen
Entwickelt für den Einsatz in Reinraumumgebungen der ISO-Klasse 5 und höher
Ideal zur Reinigung von Arbeitsflächen und zur Aufnahme von Verschmutzungen
Allgemeine Geräteverpackung und Abwischvorgänge
Blaue Arbeitsplatzmatte zur Unterstützung bei visuellen Inspektionsprozessen
Auftragen und Entfernen von Reinigungs- und Desinfektionslösungen
PU:
5 pieces
Available
The "Cleanroom Sponge Cloth D-2" is excellent for wet wiping and high absorption of liquids. The material structure allows it to clean any shape of workpiece without releasing particles. It is the sponge cloth for places where cleanroom compliance is required. The material is heat resistant up to 60° or moist heat.
The integral structure of the sponge cloth is absolutely lint-free, abrasion-resistant and offers very good absorption of liquids. The micropores support efficient cleaning of surfaces. Ecological because reusable and washable, thus reducing waste.
Excellent for washing hard disks and silicon wafers.
On delivery, the sponge cloths are dry/hard and should be softened with DI water before use to maintain the suppleness of the material.
Material & Properties
Material: Special polyurethane
Length: 230 mm
Width: 230 mm
Height: 2 mm
Pores Ø (µm): 80
Colour: white
High water absorption capacity
Heat resistant up to 60°C
Washable
Abrasion resistant
Lint-free
Micropores on the surface
Packaging
5 pieces in a bag
40 bags in a carton (200 pieces)
PU:
bag with 20 Wipes
Available
Das vorgefeuchtete Reinraumtuch "PROSAT PI PS-314-BPR" von Contec bestehen aus gespaltenen Mikrofaser aus Polyester und Nylon, die die Reinigungswirkung und die Fähigkeit zur Aufnahme von Verunreinigungen verbessert.Das Mikrofasergewebe besitzt ein hohes Absorptionsvermögen und gibt den Alkohol dosiert an die Oberfläche ab. Durch die dosierte Abgabe ist die Oberflächenabdeckung pro Wischtuch größer als bei anderen vorgetränkten Wischtüchern mit vergleichbarem Gewicht.
Material & Eigenschaften
70 % Polyester / 30 % Nylon
Farbe Weiß
Basisgewicht 80 g/m2
In deionisiertem Wasser: 0,034 g/m2
In Isopropanol: 0,017 g/m2
Partikel P > 0.5µm; (x106/m2): 11.20
Fasern > 100µm; (x103/m2): 11.96
Reinraumklasse ISO 5
GMP C/D
Wasserstrahlverfestigte Mikrofaser
Schwere Mikrofaser
in 1 Minute gegen Bakterien und in 3 Minuten gegen Hefepilze wirksam
gemäß der EU- und GB-Verordnung über Biozidprodukte zum Verkauf zugelassen. (Contec IPA wipes : EU 0020460 0002 1-2)
Flacher, wiederverschließbarer Beutel
Einsatzgebiete
Pharmazeutische Industrie
Biotechnologie
Medizintechnik
Verpackung
1 Innenbeutel mit 20 Tüchern
10 Innenbeutel in 1 Außenbeutel
4 Außenbeutel im Karton (800 Tücher)
PU:
Bag with 100 pieces
The "Cleaning Stick/Swab PS3911" is anAntistatic cleanroom cleaning stick/swab with a rectangular polyester head.
The double knitted cloth is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. This swab is free of silicone, amides and phthalates. The flexible head is lint-free and removes residues / particles without scratching the surface. The material has a very good compatibility with various solvents and is excellent for working with acetone.The head is designed for cleaning small, slotted and recessed surfaces, the excellent cleaning is controlled and supported by a flexible paddle.
Material & Features
Head material Double Knitted Polyester
Head weave Thermally bonded
Head width 13 mm
Head thickness 4.0 mm
Head length 25.0 mm
Handle material polypropylene
Handle width 5.2 mm
Handle length 103.0 mm
Total length 128.0 mm
Free of silicone, amide and DOP
Low non-volatile residue
Low particle and ion content
Good absorbency
Compatible with most common solvents
No contaminating adhesives or coatings
Micromechanical cleaning
Remove contaminants from hard disk drives
Effectively clean small, hard-to-reach areas with solvents such as IPA
Remove flux residues and excess materials.
For general cleaning
Particles, easily soluble: particles 0.5 µm <3000 counts/swab
Packaging
100 pieces in a bag
50 bags in a carton
PU:
Bag with 300 pieces
The "Cleanroom Wipe FG C3" is an extremely clean and soft cleanroom wipe made of 100% polyester fabric. The all-purpose wipe has an abrasion-resistant surface and good resistance to solvents and acids.
Material & properties
Material: 100% polyester, hydroentangled
Length: 230 mm
Width: 230 mm
Thickness: 0.279 mm
Basic weight: 68 g/m2
Clean room class ISO 4
Double packed
Very clean and soft
Non-abrasive surface
Good tear resistance
High absorbency
Good resistance to solvents
Low particulate
Nonwoven construction
Particles (>= 0,5 µm) 4 x 106 / m2
Packaging
300 wipes in a bag
8 bags in a carton (2400 wipes)
PU:
Bag à 500 pieces
"Cleaning Sticks/ Microfibre Swab PS3900" with single rounded head.
The Mini Swab is made of a single-layer microfibre that is free of organic contaminants such as silicone, amides or phthalate esters. The fabric is thermally bonded to the handle, avoiding the use of contaminating adhesive or coatings.The polyester, which is washed and packaged in an ISO Class 5 clean room, has low particle and ion content. It has excellent compatibility with most common solvents, including acetone, as well as excellent absorbency and solvent absorption capacity.The head is designed for cleaning small, slit and recessed areas. Excellent cleaning is controlled and supported by a flexible paddle.The swabs are designed for general cleaning and are the ideal swabs for cleaning components or parts.
Material & properties
Head material: Single knit microfibre
Head width 2.2 mm
Head thickness 1.2 mm
Head length 10.0 mm
Handle material polypropylene
Handle width 2.2 mm
Handle length 62.0 mm
Total length 72.0 mm
Particles, easily releasable Particles 0.5 µm <3000 counts/swab
Free of silicone, amide and DOP
Low non-volatile residues
Low particle and ion content
Good absorbency
Compatible with most common solvents
No contaminating adhesives or coatings
Micromechanical cleaning
Remove contaminants from drives
Effectively clean small, hard-to-reach areas with solvents such as IPA
Remove flux residues and excess materials
For general cleaning
Packaging
500 pieces in a bag
50 bags in a carton
PU:
Carton with 20x300 pieces
The "Sontara® MicroPure AP" was specially developed for use in cleanrooms class ISO 6 or higher. This all-round wipe combines the absorbency of natural fibres with the purity and strength of a synthetic material. Due to its cellulose content, the nonwoven material has a high absorption capacity for particles and liquids.
Material & properties
Material: 45% polyester / 55% cellulose
Length: 224 mm
Width: 224 mm
Basis weight: 68 g/m²
ISO 6
Moisture absorption: 4.27 ml/g / 290 ml/m²
All-purpose cloth
Non-woven fabric
Low extractable residue
Low ion content
Low particle release
High absorbency
Manufactured without binders, chemicals or adhesives
Advanced packaging design: no slitting or cutting
Tearing of the bag in the clean room required
Packaging
300 wipes in one bag
20 bags in a carton (6000 wipes)
